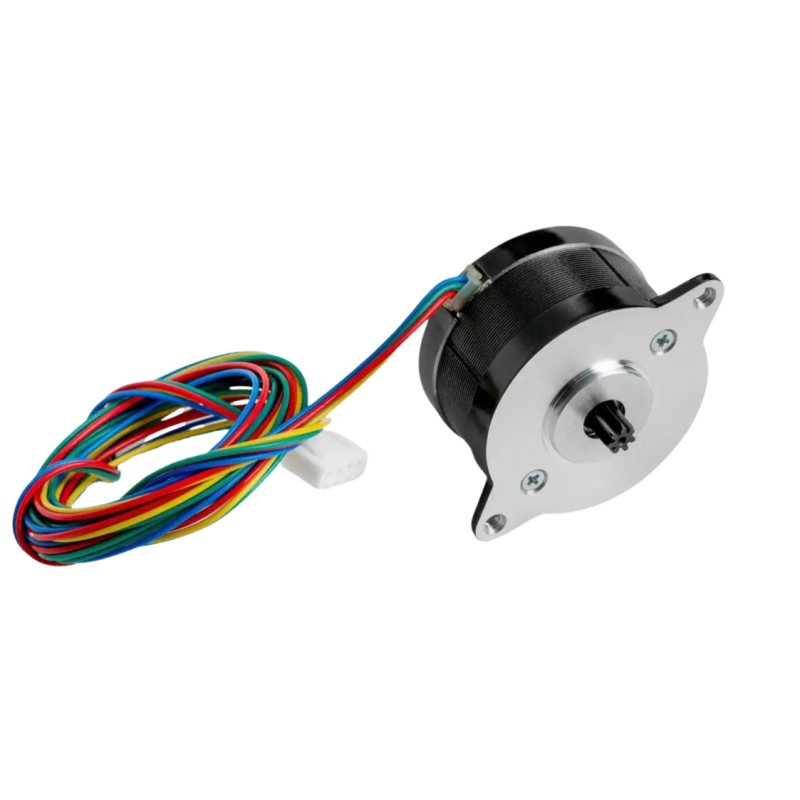

Bondtech LGX 22mm 7 Tooth Nema 14 Stepper Motor - For LGX Lite Pro

$28.99

Spare part to replace the round Nema 14 22mm stepper motor and motor gear on a Bondtech LGX™ Lite PRO Extruder

Quantity Ready To Ship

Close

Bondtech LGX 22mm 7 Tooth Nema 14 Stepper Motor - For LGX Lite Pro

Spare part to replace the round Nema 14 22mm stepper motor and motor gear on a Bondtech LGX™ Lite PRO Extruder

Rated current: 1.4 A

Recommended Max current: 0.8 A

Step angle: 1.8 deg.

Torque: 0.95 KG-cm

Output shaft diameter: 5.0 mm with flat.

Hole for mounting: 31 mm, 4xM3

Motor length: 22 mm

Weight: 129.5 g

Connector: JST XHP-4 connector

Manufacturer : LDO

ACC01STM41280
