Duet 3 Main Controller Board - 6XD - Without Drivers
$204.99

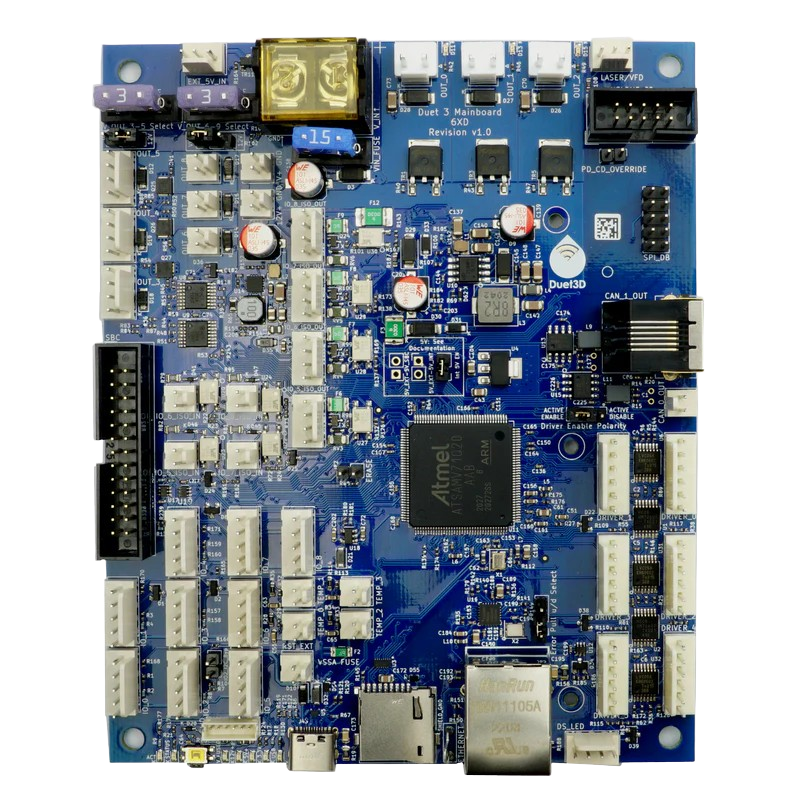

The Duet 3 Mainboard 6XD is designed to allow interfacing with the most common external stepper and servo motor drivers using step and direction signals, with support for 6 external drivers.
Duet 3 Main Controller Board - 6XD - Without Drivers
Learn More at Duet's Hardware Overview here
See the "Getting Started" guide here
The Duet 3 Mainboard 6XD is designed to allow interfacing with the most common external stepper and servo motor drivers using step and direction signals, with support for 6 external drivers. In addition it provides opto-isolated Input and Output connections for some of the GPIO functions to allow easier interfacing with PLC control systems.
Like the other Duet 3 mainboards it can be accessed directly over the network in stand alone mode (via the Ethernet port) or it has the option of using an SBC (Single Board Computer, e.g. Raspberry Pi) for control. Using the Duet 3 CAN-FD bus it is expandable with the range of Duet 3 expansion and tool boards.
Includes:
Duet 3 6XD Controller Board
Connector Kit (Including Crimp Sockets)
Raspberry Pi Connection Cable for SBC use
Features:
Processor
Powerful 32bit Atmel ATSAMV71Q20B / ATSAME70Q20B: ARM Cortex-M7 microcontroller
Expansion Options
CAN-FD BUS for connecting multiple expansion boards and tools
Support for Raspberry Pit and other SBCs
Connectivity
Dedicated SPI Bus to Single Board Computer (SBC), or, alternatively, connect over an Ethernet network
High Current Outputs
3x 6A outputs for heated bed, extruders and similar
Medium Current Outputs
6 PWM controllable outputs for fans or similar. 3 of these support 4 wire fans including tacho reading - Voltage selection built in
I/O
Nine I/O connectors with 3.3V output signal level and 30V-tolerant inputs
Temperature Measurement
4 thermistor/PT1000 inputs. Support for two temperature daughterboards for up to 4 PT100 or thermocouple sensors
Supply Voltage
Capable of accepting 11-30V
Firmware
Runs RepRapFirmware 3.x – Supports all common machine geometries, easily configurable for your specific machine requirements
DUET-3-6XD-MB
6 Items
