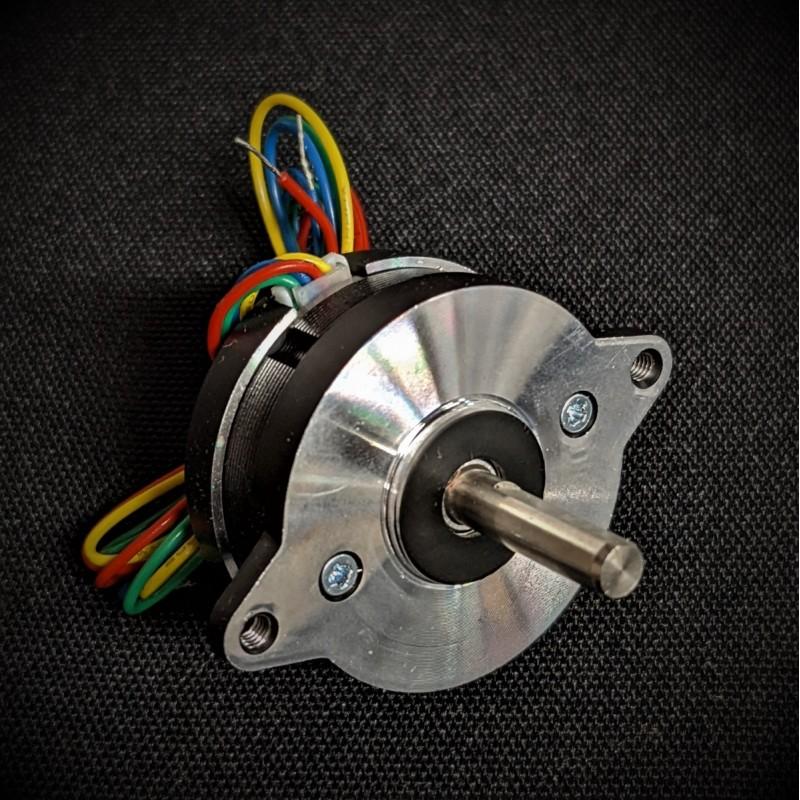

CLEARANCE - LDO Nema 14 - 17mm - High Temp Stepper Motor - LDO-36STH17-1004AH

$19.99

This High Temperature rated NEMA 14 stepper motor offers a 1.8 degree step angle and high torque with a 17mm body length. For use in elevated chamber temperature environments.  Includes an integrated 300mm length of teflon stepper wire. Manufactured by the community trusted LDO Motors.

Quantity Last items in stock

Close

LDO Nema 14 - 17mm - High Temp Stepper Motor - LDO-36STH17-1004AH

Technical Specifications:

  • Step Angle: 1.8 degrees
  • Shaft Diameter: 5mm
  • Rated Current: 1A
  • Temperature Rating: 180C
  • Weight: 70g
  • Wiring: Included - 300MM - Integrated - Teflon wire rated to 200C

See attached technical specifications PDF for more detailed information!

LDO-36STH17-1004AH
1 Item

Download

LDO-Nema14-AH Tech Sheet

Download (145.21k)
