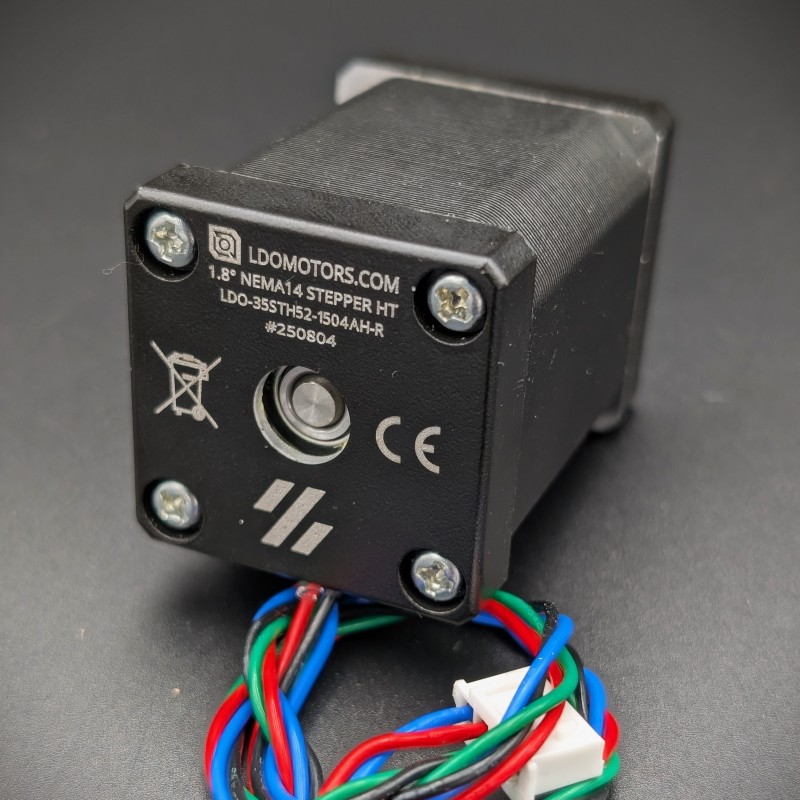

LDO Stepper Motor - High Temp - Nema 14 - 35STH52-1504AH-R
$19.99
This NEMA 14 stepper motor offers a 1.8 degree step angle and high torque with a 52mm body length. Includes 270mm of integrated teflon wire, pre-terminated with a 4-pin JST-XH connector. Manufactured by the community trusted LDO Motors.
LDO Stepper Motor - High Temp - Nema 14 - 35STH52-1504AH-R
This NEMA 14 stepper motor offers a 1.8 degree step angle and high torque with a 52mm body length. Includes 270 mm of integrated teflon wire, and comes pre-terminated with a 4-pin JST-XH connector. Manufactured by the community trusted LDO Motors.
Technical Specifications
• Step Angle: 1.8 degrees
• Shaft Diameter: 5mm - ROUND
• Rated Current: 1.5 amps
• Holding Torque: 0.37 N-m
• Weight: 290 grams
• Wiring: 270mm - JST-XH (4 Pin) - Teflon
See attached technical specifications PDF for more detailed information!
35STH52-1504AH-R
