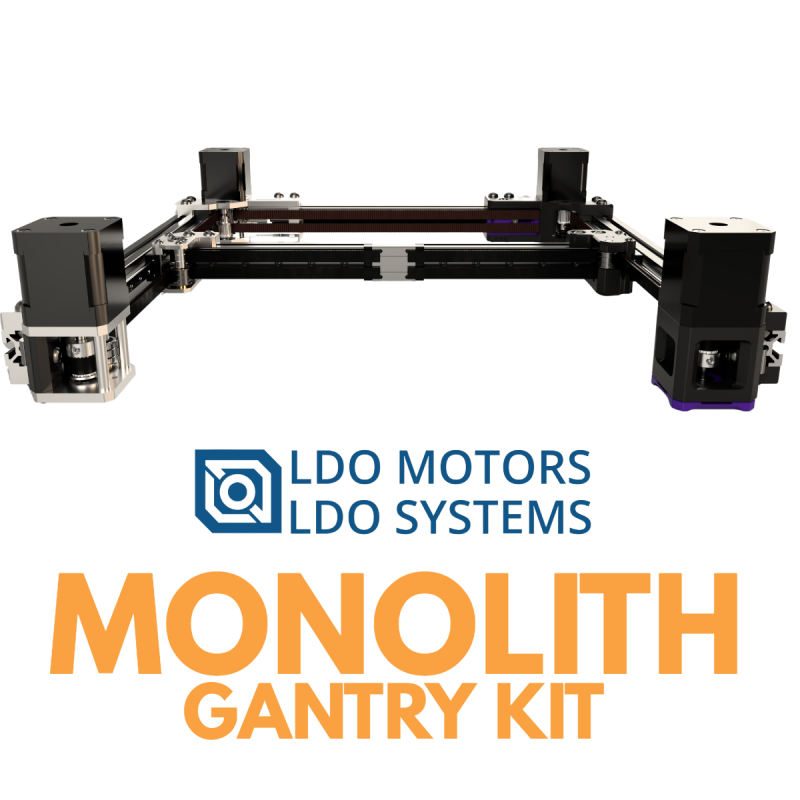

PRE-ORDER - LDO Monolith AWD 9mm CNC Gantry Kit - R1 - Multiple Types
$209.99
LDO and Monolith3D bring you the Gantry R1, a performance oriented configurable gantry platform for the Voron V2.4 and Trident.
THIS ITEM IS ON PREORDER! ETA ON OR BEFORE 04/24 (NOT GUARANTEED). ORDERS INCLUDING PRE-ORDER ITEMS WILL SHIP COMPLETE WHEN ALL LINE ITEMS ARE IN STOCK. CANCELLATION INCURS A 5% PAYMENT PROCESSING FEE.
PRE-ORDER - LDO Monolith 9mm CNC Gantry Kit - R1 - Multiple Types
Learn more at the Monolith3D Github
What's new with Monolith R1?
- Updated styling
- More shared parts between 6 and 9mm
- Sheet metal options
- Can fit into a stock 2020 frame at the cost of some Y-overtravel with the added no-protrusion mode
- Much better tensioner travel
- No toothed idlers
The Monolith Gantry aims for a cost effective approach to:
- The shortest and the simplest belt path possible with AWD compatibility
- The shortest moment arms possible for increased rigidity even when reusing hardware and motion parts
- Double shear steppers and live shaft idlers for higher belt tensions and better reliability
- Good-looking design
Performance expectations:
2WD: Due to the 10-15cm shorter belt path, with stiffer and lighter XY-joints the printer should perform similarly to a 50mm smaller one equipped with the same X-axis setup.
AWD: It doesn't come at the cost of adding 20cm belt length and idlers, so input shaper scaling can be close to +100% compared to 2WD due to the truly halved effective belt length. But only when no toolhead or frame bottlenecks are limiting its scaling.
9mm belts: Wider belts can offer an additional 50% input shaper scaling on top of what's described above.
What's Included:
Anodized CNC Machined parts
All conversion Hardware
Includes Bearings, Shafts, ETC
Not Included:
Printed Parts (as needed)
Stepper Motors (add them above and save 10%!)
9mm AB Belt (add it above and save 10%!)
- 250mm Builds need 3 Meters of belt
- 300mm Builds need 4 Meters of belt
- 350mm Builds need 4 Meters of belt
LDO-KIT-MONO-R1-VT
2 Items
Specific References
- ean13
- 6975415155468
