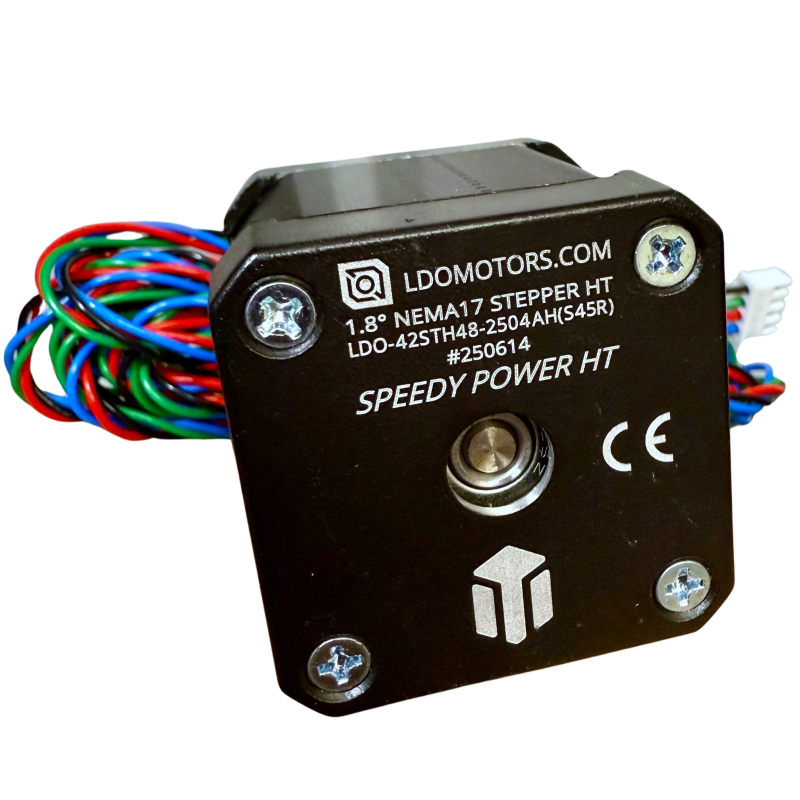

PRE-ORDER LDO Stepper Motor - High Temp Nema 17 - 42STH48-2504AH (S45-R) - Speedy Power - Round Shaft
$26.99
This NEMA 17 High Temperature stepper motor offers a 1.8 degree step angle and high torque with a 48mm body length. Includes a 1.5 meter length of PTFE wire terminated with a 4 pin JST-XH connector. It features a 45mm length round shaft.
THIS ITEM IS ON PREORDER! ETA ON OR BEFORE 04/10 (NOT GUARANTEED). ORDERS INCLUDING PRE-ORDER ITEMS WILL SHIP COMPLETE WHEN ALL LINE ITEMS ARE IN STOCK. CANCELLATION INCURS A 5% PAYMENT PROCESSING FEE.
PRE-ORDER LDO Stepper Motor - High Temp Nema 17 - 42STH48-2504AH (S45-R) - Speedy Power - Round Shaft
This NEMA 17 High Temperature stepper motor offers a 1.8 degree step angle and high torque with a 48mm body length. Includes a 1.5 meter length of PTFE wire terminated with a 4 pin JST-XH connector. It features a 45mm length round shaft.
Ideal for use with AWD / Hybrid CoreXY motion systems!
Technical Specifications:
- Step Angle: 1.8 degrees
- Shaft Diameter: 5mm
- Rated Current: 2.5A
- Holding Torque: 5.5 kg/cm
- Weight: 350g
- Wiring: Included - 1.M - JST-XH (4 Pin) -PTFE - Integrated
- Shaft Length: 45mm
LDO-42STH48-2504AH(S45R)
