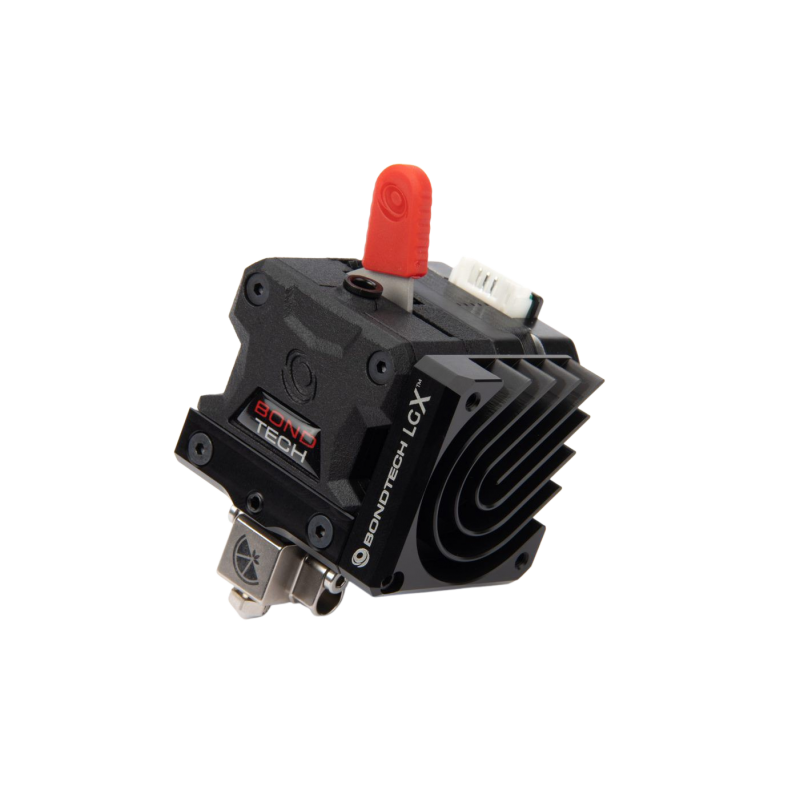

Bondtech LGX FF Print Head

$168.00

Meet the new LGX Large Gears eXtruder from Bondtech. It represents the latest innovation in dual drive technology from the company that brought you the BMG. This Print Head kit includes an LGX extruder AND the LGX For Flexibles upgrade resulting in a complete FDM print head.



Delivery Policy



Return Policy

Bondtech LGX FF Print Head

Meet the new LGX Large Gears eXtruder from Bondtech. It represents the latest innovation in dual drive technology from the company that brought you the BMG. This Print Head kit includes an LGX extruder AND the LGX For Flexibles upgrade resulting in a complete FDM print head.

Master all materials

Excel with Flexibles

Also available separately (Linked Below)

Each LGX™ FF Print Head is supplied with:

  • 1x LGX™ feeder;
  • 1x Custom LDO Nema17 25mm pancake stepper motor;
  • 1x Bowden Interface Plug (with threaded metal push-fit);
  • 1x Direct Drive Interface Plug (for Slice Engineering hotends);
  • 1x 2mm Hex Key (recommended tool);
  • 1x Product Line Information Brochure;
  • 1x Powered By Bondtech sticker.
  • 3x M3x30 mm Low Head screws;
  • 4x M3x18 mm Stud with 5 Hex with M3x4 thread;
  • 30mm PTFE tube to use in the Direct Drive Interface Plug.
  • 1x LGX™ Black Anodized Aluminum Heat Sink
  • 1x LGX™ Black Anodized Aluminum Air Cooled Cold Block
  • 1x LGX™ Air-cooled Cold Block Mounting Hardware
  • 1x Copperhead™ LGX™ Heat Break
  • 1x Copperhead™ Hot Block
  • 1x Bondtech M6x1x7.5 Coated Brass Nozzle 0.4mm

New features include:

  • Larger drive wheels, for increased filament grip
  • Filament pre-tension lever, for repeated results
  • Multi-function interface socket, for tool or application quick swap
  • Drive wheels’ maintenance windows for easy cleaning
  • Compact, light & symmetric design for increased performance and compatibility
  • Multiple mounting hole patterns, for easy and flexible mounting options
  • A small step for a greener future. New shipping boxes without bleaching & no coating

Features Overview:

Larger Drive Wheels

for increased filament grip

With the large drive wheels of the LGX™, more teeth engage the filament at the same time to increase the grip and eliminate the risk of grinding the filament. This feature, along the custom stepper motor, also prevents damages from force feeding filament to clogged or jammed hotends.

Filament Pre-tension Lever

for repeated results

We replaced the hinge, thumbscrew and spring with a calibrated, 6 preset lever system.
The first position of the lever, all to the left, releases the engagement of the drive wheels with the filament, making filament load and unload very easy.
5 more positions, to the right, give repeatable setups to achieve repeatable results.
The whole solution is compatible with abrasive, rigid, semi-flexible, flexible and soft filaments.

Multi-function Interface Socket

for tool or application quick swap

From Bowden to direct drive and back… quick and easy.
Swapping hotends? Quick and easy.

The interface socket allows you to connect or swap interface plugs that serve different applications or hotends - all without opening the extruder and just 2 screws.

It is also an open door for Future Bondtech or third party plugs to expand the realm of solutions currently available.

Drive Wheels’ Maintenance Windows

for easy cleaning

The extruder looks amazing with the partial reveal of its drive wheels but… more than a gorgeous detail, those windows give access to easy maintenance.
The teeth can be brushed, air can be blow through and dirt can be vacuum cleaned from the outside.
No need to disassemble the extruder to keep it clean.

Compact, light & symmetric design

for increased performance and compatibility

Compact and light.
The smallest AND the lightest, dare to compare.

Symmetric for compatibility.

No more doubts and questions about, what to choose - standard or mirrored?
Simple. There is only one!

Multiple mounting points

for easy and flexible integration

The LGX™ is the first extruder we supply with so many mounting hole patterns.

Bottom, front, back, left and right. There are so many ways to grab it, and to mount something to it.

It is very flexible and will be easy to attach to most frame styles or carriage plates.

A small step for a greener Future

craft boxes without bleaching & no coating

A small step in the right direction.
We are leaving behind the bleached & coated white boxes with color prints to start using craft cardboard and black prints made with ink based on sustainable materials only.
The Bondtech LGX™ boxes are fully recyclable.

Looking for an even deeper dive? You can find more at Bondtech Here
