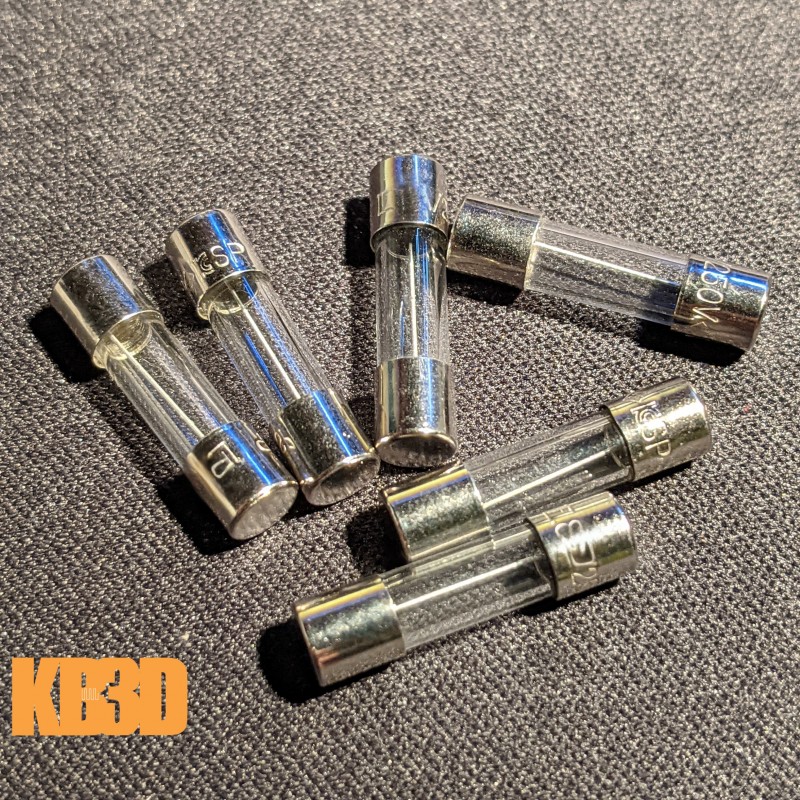

LittelFuse 5x20mm 10A Glass Fuse - AC/DC - Fast Blow
$1.09
Manufactured by LittelFuse, this 10 amp cartridge fuse measures 5mmx20mm. I has a fast blow response time and is rated for use in both AC and DC applications up to 250V.
LittelFuse 5x20mm 10A Glass Fuse - AC/DC - Fast Blow
Sold Each.
|
Mfr
|
Littelfuse Inc.
|
|
|
Series
|
217
|
|
|
Mounting Type
|
Holder
|
|
|
Fuse Type
|
Cartridge, Glass
|
|
|
Response Time
|
Fast Blow
|
|
|
Package / Case
|
5mm x 20mm
|
|
|
Breaking Capacity @ Rated Voltage
|
100A
|
|
|
Approval Agency
|
CE, K-MARK, VDE, PSE
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Size / Dimension
|
0.205" Dia x 0.787" L (5.20mm x 20.00mm)
|
|
|
Melting I²t
|
217.635
|
|
|
Current Rating (Amps)
|
10 A
|
|
|
Voltage Rating - AC
|
250 V
|
|
|
DC Cold Resistance
|
0.0063 Ohms
|
LittelFuse
0217010.MXP
