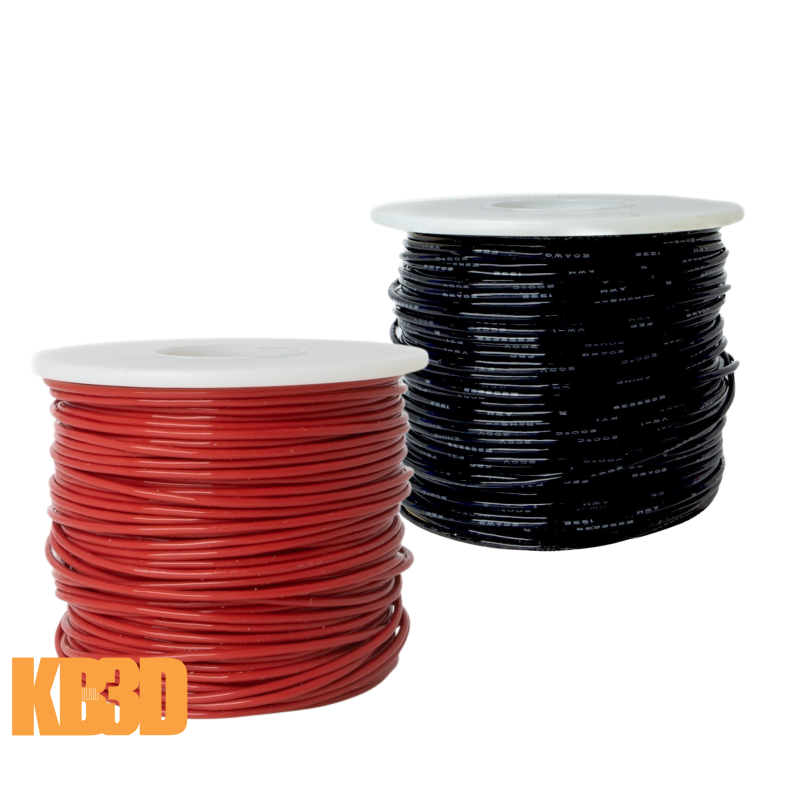

3DO High Temperature Motion Rated TC + FEP wire - Multiple Sizes & Colors
$39.99
An exceptionally high quality TC+FEP wire designed specifically with motion systems in mind. Available in multiple gauges and colors - rated for a temperature range of -50C to 200C
3DO High Temperature Motion Rated TC + FEP wire - Multiple Sizes & Colors
Robust industrial cable for demanding applications
20AWG Equivalent:
Available in Black and Red
TC+FEP construction - UL1332 compliant
Dimension: 20AWG (0.50mm2)
Threads: 100/0.08TS
Outer diameter: 1.6mm
Working temperature: -50°C to +200°C
Minimum bending radius: 8mm static, 11mm dynamic
Length: 50 meters per roll
24AWG Equivalent:
Available in Black and Red
TC+FEP construction - UL1332 compliant
Dimension: 20AWG (0.25mm2)
Threads: 40/0.08TS
Outer diameter: 1.2mm
Working temperature: -50°C to +200°C
Minimum bending radius: 6mm static, 8mm dynamic
Length: 50 meters per roll
3DO
3DO-FEP-20-BLK
