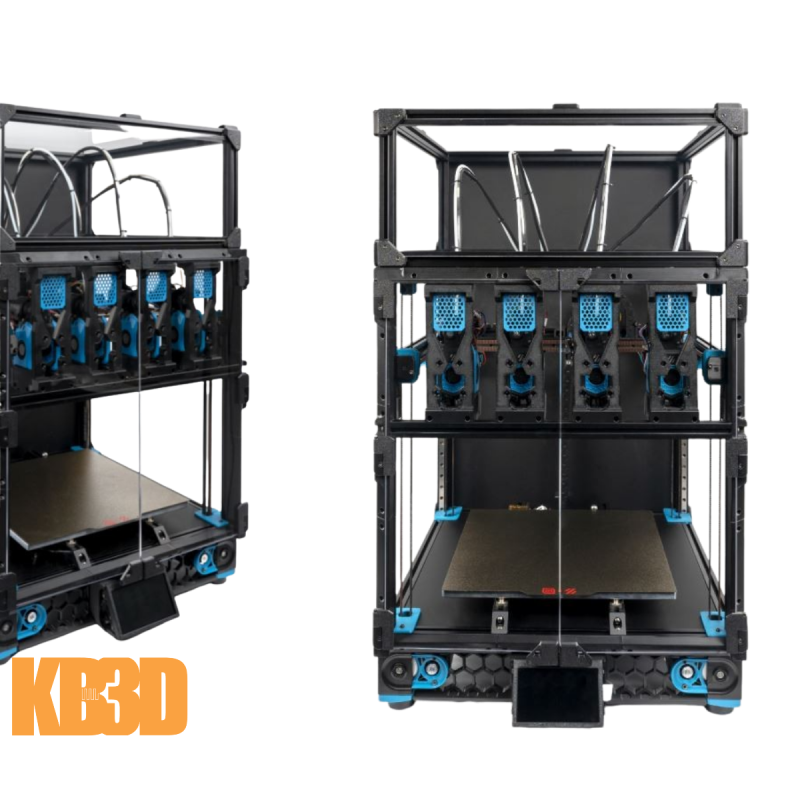

PRE-ORDER LDO Motors Stealth Changer Kit
$59.99
The LDO Stealth Changer Kit (SC) is a configurable tool changing system for the Voron 2.4. Designed and open-sourced by DraftShift!
The complete package is comprised of 3 separate sub-kits, and compatible with multiple toolheads including Stealth Burner, Dragon Burner, Rapid Burner, Yavoth, XOL and Archetype.
THIS ITEM IS ON PRE-ORDER! PRODUCTION RELEASE STARTS IN JUNE. ORDERS INCLUDING PRE-ORDER ITEMS WILL SHIP COMPLETE WHEN ALL LINE ITEMS ARE IN STOCK. CANCELLATION INCURS A 5% PAYMENT PROCESSING FEE.
LDO Motors Stealth Changer Base and Tool & Dock Kit
The LDO Stealth Changer Kit (SC) is a configurable tool changing system for the Voron 2.4, based on the open-source StealthChanger project from DraftShift Design. The V2.4 300mm supports up to 5 toolheads and the V2.4 350mm supports up to 6.
How It Works
The Stealth Changer replaces your current toolhead carriage with a shuttle system that can automatically swap between different tools. The shuttle mounts to your printer's gantry just like a regular toolhead, but uses bushings and pins with magnets to quickly connect and disconnect tools.
When you need a different tool, the printer moves to a dock, releases the current tool, picks up a new one and keeps printing. The system always knows which tool is attached thanks to the built-in tap sensor, and it's compatible with most popular toolheads (see the list below) by bolting a simple backplate to existing mount points.
Kit Configuration
The Stealth Changer is split into three separate sub-kits:
★ SC BASE KIT
Contains the core components required for the shuttle system: CNC machined shuttle, Nitehawk-Hexa 6+1 ports USB hub adapter, Sexball probe and all necessary hardware. This kit provides the foundation for the tool changing system and is required for any Stealth Changer installation.
★ SC TOOL & DOCK KIT
Each Tool & Dock Kit contains components for one complete tool station: Nitehawk-36 Toolboard Kit (SC Edition), Voron Opto Tap, RGB Sequin (user soldered), High CFM LDO fans and all necessary parts for dock.
* Important: You will need one Tool & Dock Kit for each additional tool you plan to use. Hotend and extruder are not included.
★ SC TOPHAT & DOOR BUFFER KIT
The TopHat & Door Buffer Kit provides the components for enclosed printers: LDO quality TopHat extrusions, clear PC panels, crossbar for door buffer and all necessary hardware.
Compatibility and Requirements
Supported Toolheads : Stealth Burner, Dragon Burner, Rapid Burner, Yavoth, XOL and Archetype toolheads are currently supported.
Build Volume Considerations : Tool capacity varies by printer size. Approximately 76mm per tool is required for Blackbird, Stealth Burner, and XOL toolheads, with 20mm clearance needed on each side for gantry movement. Build volume is reduced in the Y and Z areas at the front of the build plate, with the exact amount depending on dock positioning and toolhead dimensions.
Setup Requirements : CAN bus is strongly recommended due to the complexity of managing multiple wire sets.
Maintenance and Serviceability
The simplified Stealth Changer design reduces the total part count compared to bearing-based systems for easier assembly and maintenance. Wear items such as bushings and pins are easily replaced.
