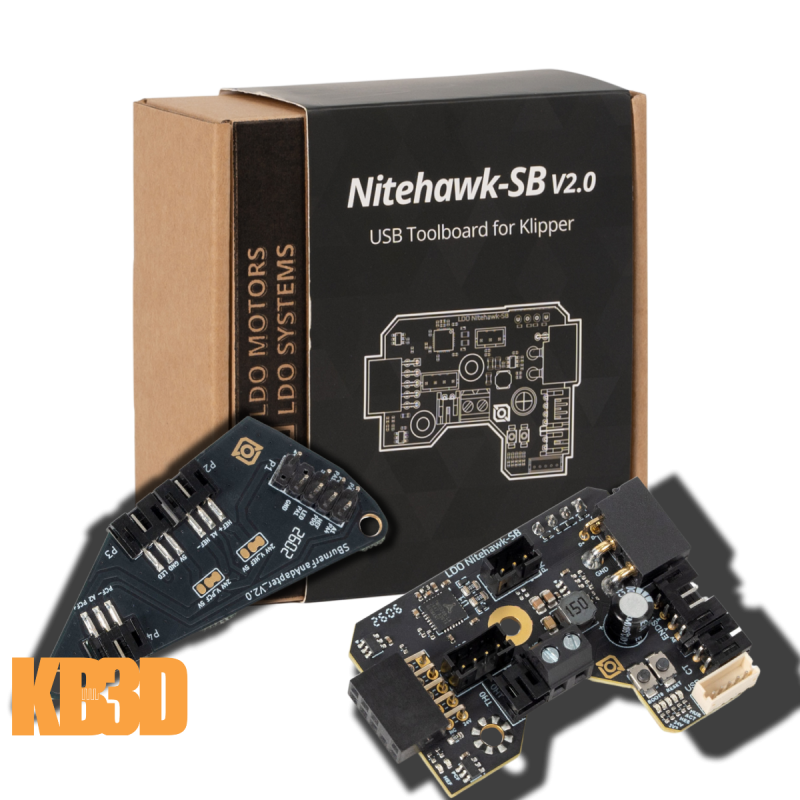

LDO Nitehawk-SB USB Tool Head for Voron - V2
$39.99
Nitehawk SB V2 is a USB tool head PCB with a STM32G0B1 MCU, TMC2209, Accelerometer all integrated into one board. The form factor is based on HartK’s two piece stealthburner tool head PCB.
LDO Nitehawk-SB USB Tool Head for Voron - V2
Learn more at LDO Docs here
See the GitHub here
Nitehawk SB V2 is a USB tool head PCB with a STM32G0B1 MCU, TMC2209, Accelerometer all integrated into one board. The form factor is based on HartK’s two piece stealthburner tool head PCB.
What's new with V2:
- Onboard microcontroller changed from RP2040 to STM32G0B1
- Added USB hub and secondary USB port as in Nitehawk-36
- Added general purpose I2C port
- Reversed connector gender between main toolboard and fan adapter PCB. The headers are also now keyed prevent misalignment
- Probe, TH0, XY Endstop ports changed from JST-XH2.5 to JST-PH2.0
- Vastly Improved ESD performance
Features
- Convenient wiring, no more complicated and error prone breakout cables - nitehawk only requires 24V power and a USB connector to the RPI host
- USB Klipper connection, no additional software or hardware setup compared to CAN
- Custom toolhead cable, a single combined USB data and power cable rated for drag chain use, but can also be used in umbilical configuration
- Convenient Input Shaping, run input shaper calibration at anytime with an onboard accelerometer
- Tacho enabled fans, both hotend and part fan ports are three pin tachometer compatible, allowing for additional diagnostics and safety
- Secondary USB port, an onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable
LDO-NH-SB-V2
52 Items
