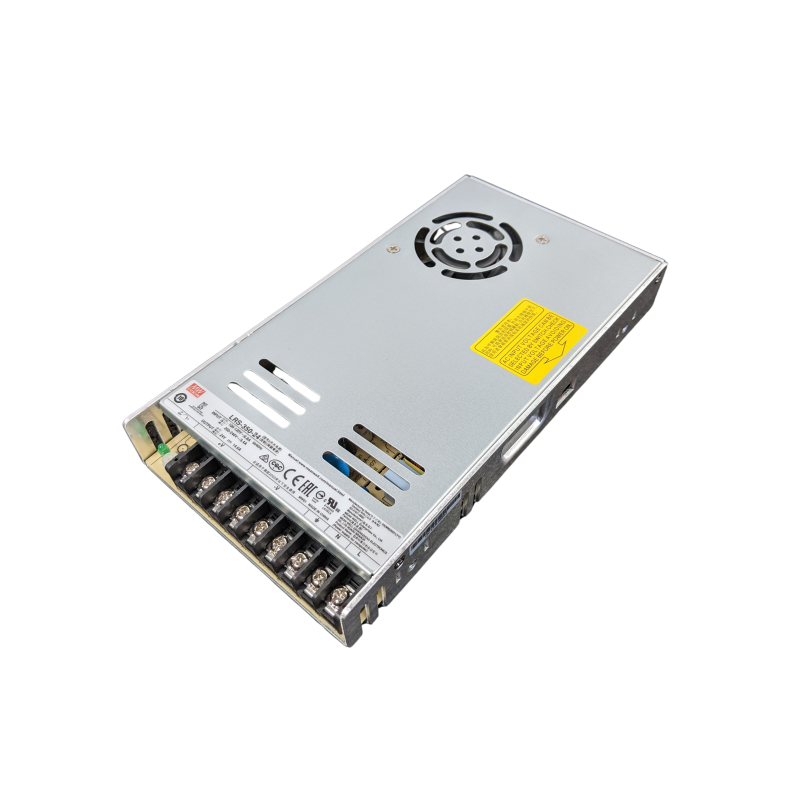

Mean Well LRS-350-24 Switching Power Supply - 24V - 350W
$38.99
Mean Well LRS-350-24 switching power supply delivers 350W at 24V/14.6A with switchable input voltage. Ideal for 3D printers, CNC machines and LED lighting systems.
Mean Well LRS-350-24 Switching Power Supply - 24V - 350W
The Mean Well LRS-350-24 is a 350W switching power supply delivering 24V DC at 14.6A output current. This enclosed AC/DC converter features switchable input voltage (115VAC/230VAC), built-in cooling fan, and operates reliably from -30°C to 70°C. Popular for 3D printers, CNC machines, LED lighting, and industrial automation applications.
The LRS-350-24 includes short circuit, overload, overvoltage, and over-temperature protection with 89% efficiency and extremely low standby power consumption (less than 0.75W). Compact 1U low-profile design (8.46" x 4.53" x 1.18") with chassis mounting. UL/cUL and CE certified for commercial and industrial use.
|
Mfr
|
MEAN WELL USA Inc.
|
|
|
Series
|
LRS-350 (350W)
|
|
|
Type
|
Enclosed
|
|
|
Voltage - Input
|
90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC
|
|
|
Voltage - Output 1
|
24V
|
|
|
Current - Output (Max)
|
14.6A
|
|
|
Power (Watts)
|
350W
|
|
|
Applications
|
ITE (Commercial)
|
|
|
Efficiency
|
89%
|
|
|
Operating Temperature
|
-25°C ~ 70°C (With Derating)
|
|
|
Features
|
Adjustable Output
|
|
|
Mounting Type
|
Chassis Mount
|
|
|
Size / Dimension
|
8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm)
|
|
|
Approval Agency
|
CB, cURus
|
|
|
Minimum Load Required
|
No
|
|
|
Number of Outputs
|
1
|
|
|
Voltage - Isolation
|
3 kV
|
MeanWell
LRS-350-24
