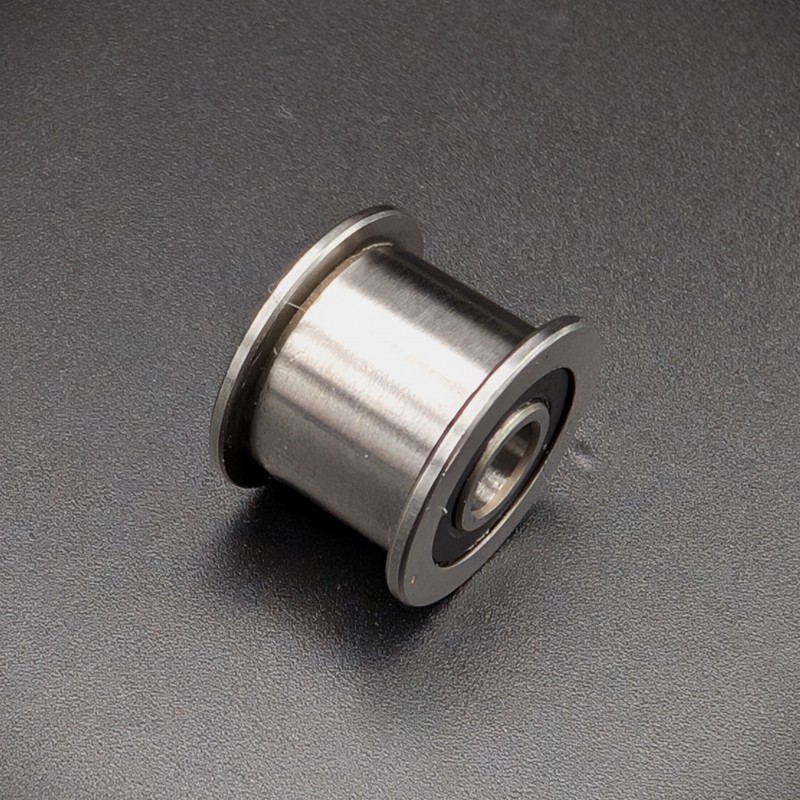

Heavy Duty Idler for 9mm Belt - 5mm Bore
$5.89
These heavy duty idlers feature a unibody design making use of 3 total load distributed rows of bearings. They offer a 5mm Bore diameter for use with up to 9mm belts.
Heavy Duty Idler for 9mm Belt - 5mm Bore
These heavy duty idlers feature a unibody design making use of 3 total load distributed rows of bearings. They offer a 5mm Bore diameter for use with up to 9mm belts.
Features:
Significantly increased load bearing capacity
Outer Bearing Race used as belt surface
Bearing Steel Construction
Specs:
Height: 12mm
Belt Width Maximum: 9.8mm
Bore / I.D.: 4.96 +- 0.02mm (5mm)
Bearing ball Diameter: 2.4mm (2.4x larger than F695!)
Load Ratings:
- Cr 1400n
- Cor 600n
Max Speed: 5000RPM
Temperature Window: -30C-120C
Ingress Protection: Rubber Seal
HDI-S-20-9-5
These heavy duty idlers feature a unibody design making use of 3 total load distributed rows of bearings. They offer a 5mm Bore diameter for use with up to 9mm belts.
