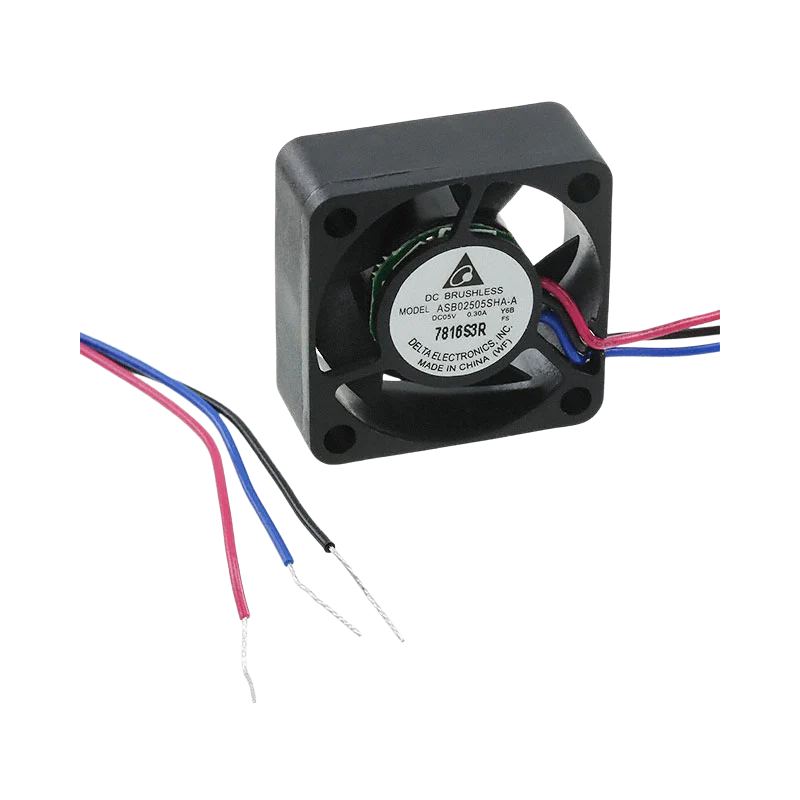

Delta 2510 Axial Cooling Fan - 5V - 3 Wire
$10.19
This genuine Delta 2510 brushless axial fan measures 25x25x10mm and operates at 5V. It has a CFM rating of 4.3 and ships with bare leads. Enjoy the long life and high performance promised by Delta for your machine.
Delta 2510 Axial Cooling Fan - 5V - 3 Wire
|
Voltage - Rated
|
5VDC
|
|
|
Size / Dimension
|
Square - 25mm L x 25mm H
|
|
|
Width
|
10.00mm
|
|
|
Air Flow
|
4.3 CFM (0.120m³/min)
|
|
|
Static Pressure
|
0.320 in H2O (79.7 Pa)
|
|
|
Bearing Type
|
Sleeve
|
|
|
Fan Type
|
Axial
|
|
|
Features
|
Locked Rotor Protection. Speed Sensor (Tach)
|
|
|
Noise
|
31.0dB(A)
|
|
|
Power (Watts)
|
0.6 W
|
|
|
RPM
|
15000 RPM
|
|
|
Termination
|
3 Wire Leads
|
|
|
Ingress Protection
|
-
|
|
|
Operating Temperature
|
14 ~ 158°F (-10 ~ 70°C)
|
|
|
Weight
|
0.014 lb (6.35 g)
|
|
|
Current Rating (Amps)
|
0.120A
|
|
|
Voltage Range
|
4 ~ 5.5VDC
|
|
|
Material - Frame
|
Plastic
|
|
|
Material - Blade
|
Plastic
|
|
|
Lifetime @ Temp.
|
20000 Hrs @ 40°C
|
Delta
ASB02505SHA-AY6B
