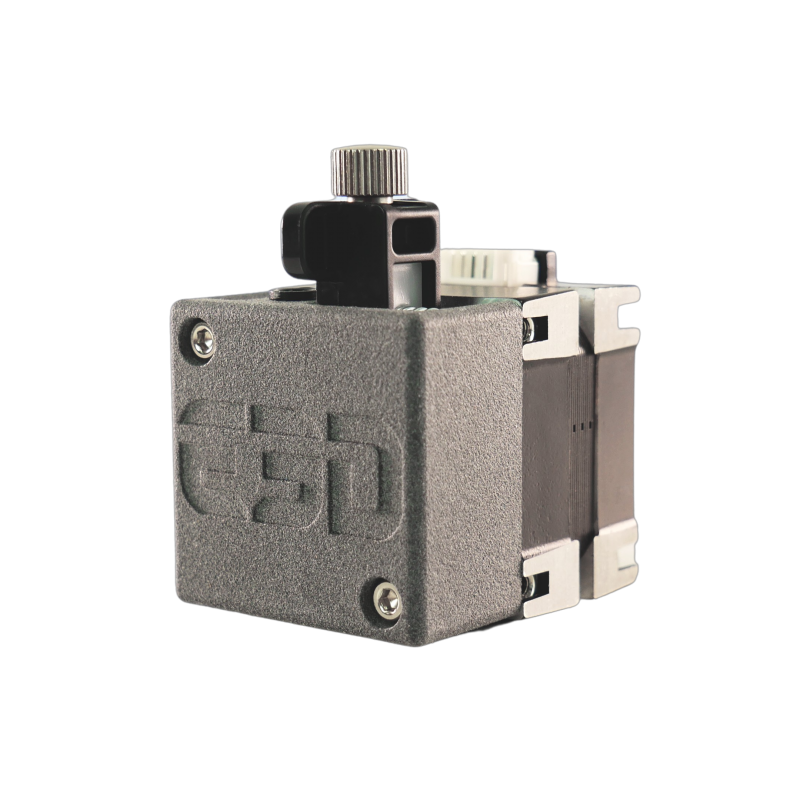

E3D Hemera XS Bowden V2

$131.99

E3D's Hemera XS Bowden V2 is 46g lighter and almost 6mm shorter than its predecessor, thanks to replacing the old heatsink with a 3D-printed, lightweight cover.

Product Options

Frequently Purchased Together

E3D Revo High Flow Hot Side Upgrade Kit - Single Nozzle

E3D Revo High Flow Hot Side Upgrade Kit - Single Nozzle

$81.99 Pack content
E3D Rapid Change Revo Heater Core - With Spring - 24V - 40W

E3D Rapid Change Revo Heater Core - With Spring - 24V - 40W

$32.99
E3D Rapid Change Revo Nozzle - ObXidian - Various Sizes

E3D Rapid Change Revo Nozzle - ObXidian - Various Sizes

$51.99
E3D Rapid Change Revo Nozzle - Brass - Various Sizes

E3D Rapid Change Revo Nozzle - Brass - Various Sizes

$22.99
E3D Rapid Change Revo Nozzle - High Flow - Various Sizes

E3D Rapid Change Revo Nozzle - High Flow - Various Sizes

$44.99
Quantity
Last items in stock

Close

E3D Hemera XS Bowden V2

E3D's Hemera XS Bowden V2 is 46g lighter and almost 6mm shorter than its predecessor, thanks to replacing the old heatsink with a 3D-printed, lightweight cover.

Shorter and lighter. Hemera XS Bowden V2 is 46g lighter and almost 6mm shorter than its predecessor, thanks to replacing the old heatsink with a 3D-printed, lightweight cover.

Capable of a wide range of 3D printing filaments. Enjoy excellent performance with all 3D printing materials, particularly challenging materials like abrasives thanks to hardened steel hobbs.

All the force you need. Hemera XS Bowden has all the extrusion force you need to drive the entire E3D ecosystem, including Revo High Flow and SuperVolcano.

Less likely to strip filament. In the event of a jam, the filament drive train for Hemera XS will stall instead of stripping the filament, making it easier to recover and start 3D printing again.

 T-slot flat mounting. Our custom mounting system means a range of accessories can be mounted on this extrusion system, such as bed levelling probes, expansion boards, and more!

Features & Specs:

Filament diameter: 1.75mm

Works with Revo HotEnds, and V6 ecosystem HotEnds

T-slot flat mounting system

Dimensions: 85.5 x 44 x 65.25mm (HxWxD)

Recommended Current: 1.40A Peak (~0.99A RMS)

Nominal steps per mm (x16): 397

Step angle: 1.8°

Includes:

1 x Hemera XS assembly

1 x 1.75mm Collet

1 x 1.75mm Collet clip

1 x Hemera fixings kit

1 x 1.75mm 100mm PTFE tube

HEMERA-XS-175-B
