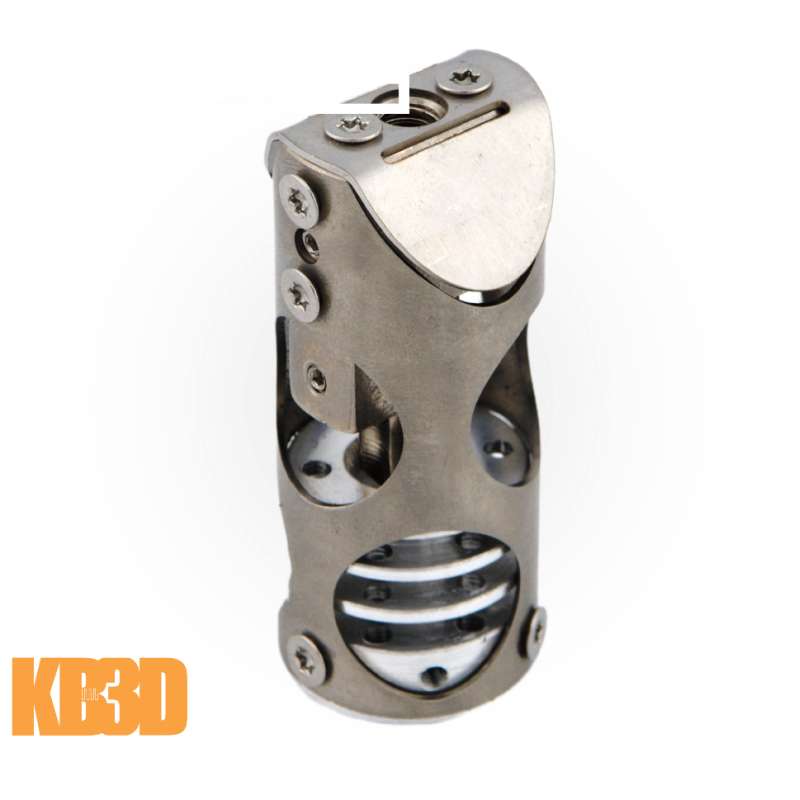

Lukes Lab Chube Hot End
$319.99
The Chube Hotend meets all requirements for high-flow, high-speed, high-temperature printing in a reliable, cost effective, patent-pending solution.

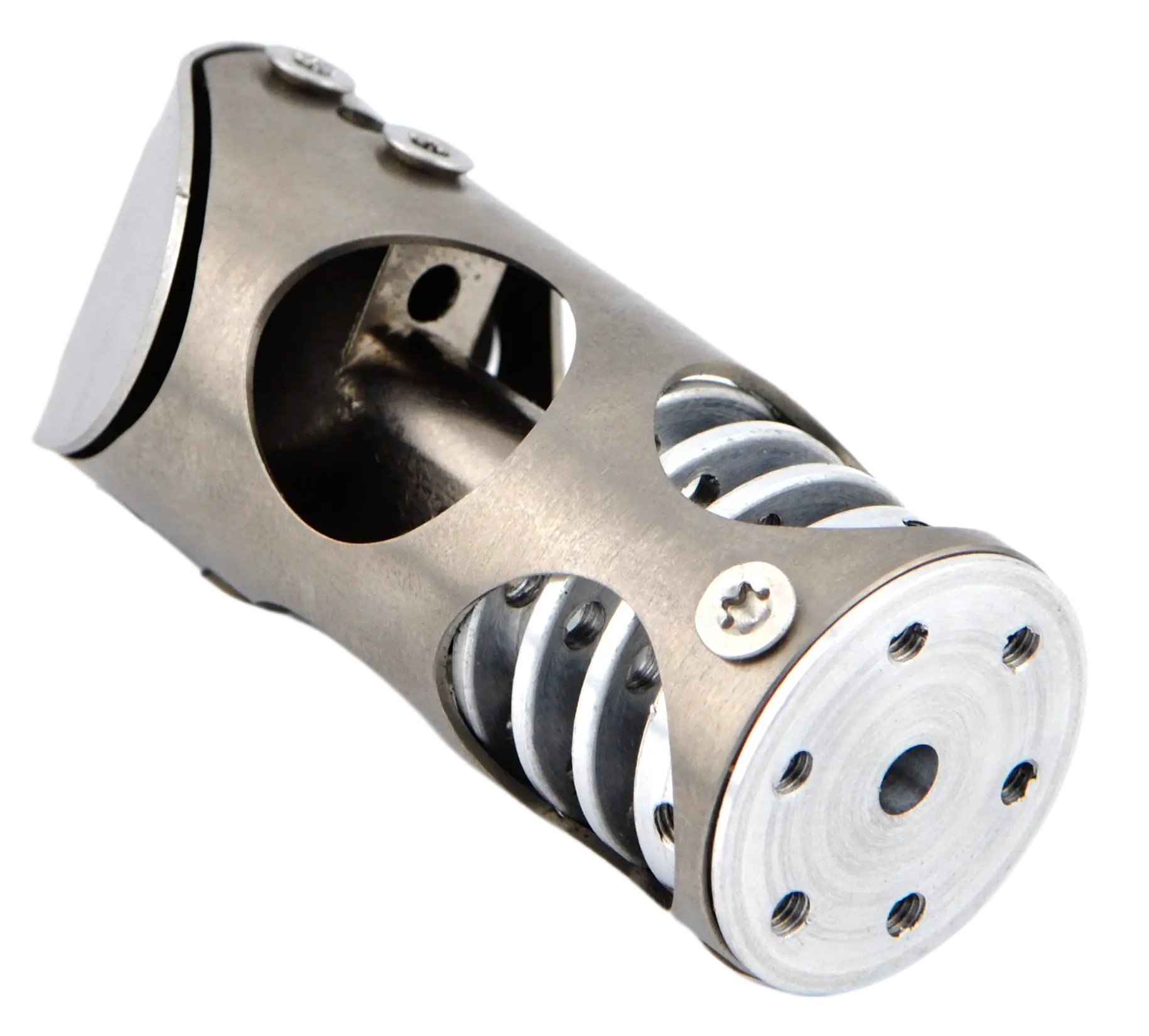

Massive Meltzone, Compact Hotend

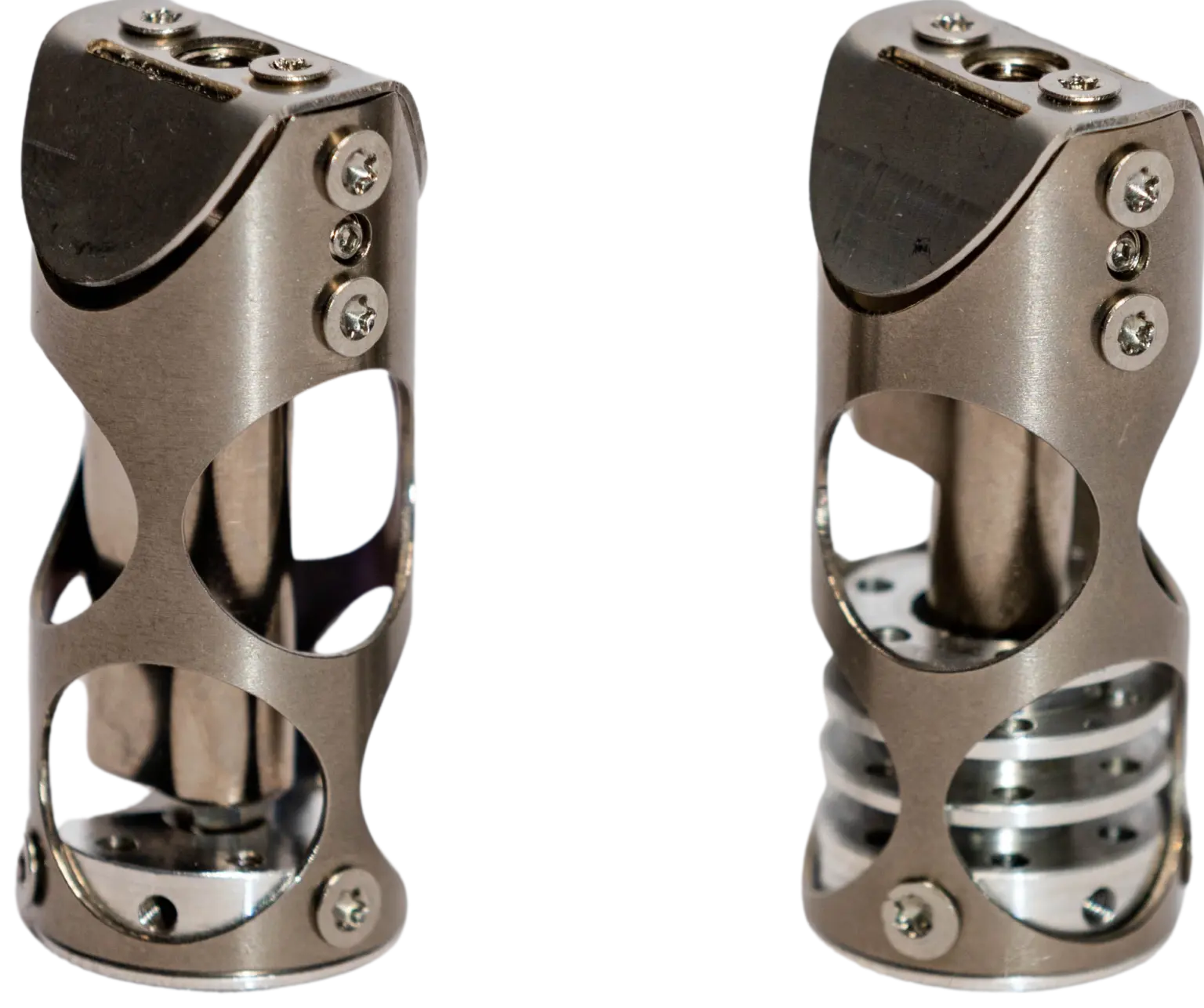

Boasting either a 42mm or 52mm long meltzone in the Air or Conduction configurations, the Chube Hotend is one of the most compact high-flow hotends on the market. Both versions are 60mm long before adding your chosen nozzle. With all that meltzone, the Chube Hotend remains lightweight: the Air weighs in at 69g, and the Conduction at 74g. Final weight will differ based upon chosen heater, thermistor, and nozzle.

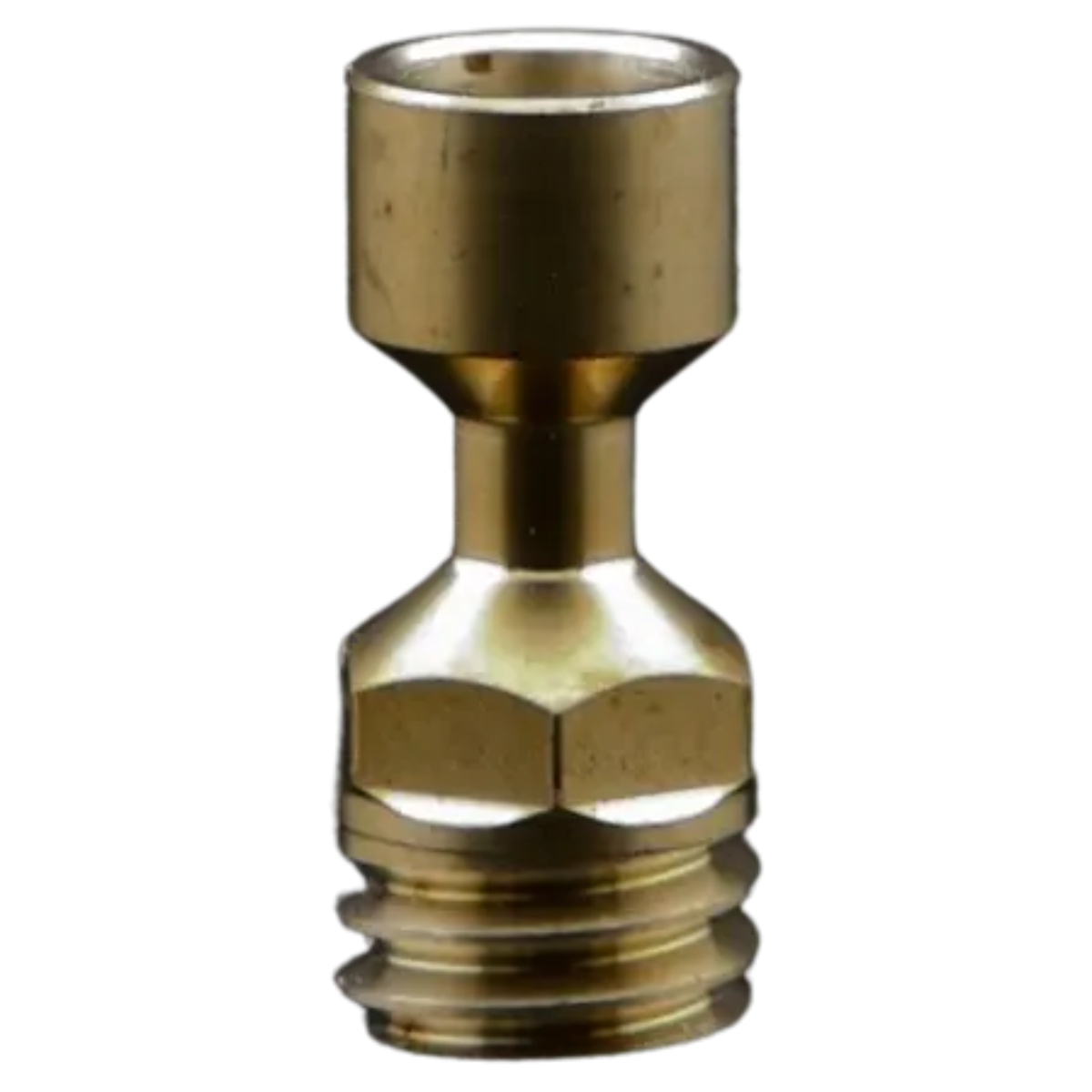

Featuring Chalice Heatbreak Technology
The Chalice Heatbreak uses aerospace materials combined with a hard, lubricious surface treatment to provide an unrivaled printing experience. The thin, unibody break can withstand extreme temperatures and abrasive materials with ease while still preventing heat creep; keeping the surrounding components cold. The cup design of Chalice provides an ideal seat for the bowden tube and smoothly guides filament into the generous meltzone.
Thoughtful Design
We've taken the time to get things right and to be the change we want to see in hotend design. Our design is both incredibly robust as well as thermally efficient, meaning both better performance as well as lower downtime. Chube Hotends are excellent for high temperature printing, and ideal for abrasive materials. Featuring a compact but serviceable design with integrated part cooling shield, The Chube hotend is designed with users in mind from install to print.
Use the nozzles you already have and love
Chube is fully compatible with existing Reprap (V6) nozzles. No need to buy anything new, just install with a simple, single-handed process and away you go!
Standard Heaters & Thermistors
Replaceable and reliable components are a core feature of the Chube Hotend. The Chube Air uses 6x20-22mm heaters, while Chube Conduction uses up to 47.5mm long heaters. You can utilize your existing library of trusted heaters instead of adding yet another spare part to your shelf. The same applies to temperature sensors - Chube adopts and embraces the common 3x15mm sensor cartridge in both configurations.
Small Threads, Begone!
Operators can rejoice that the Chube Hotend is assembled and mounted with M3 hardware - not M2.5, not M1.6. No small hardware is anywhere on the unit. Not only does the Chube Hotend have M3 hardware, but the flathead screws are torx, which significantly reduces the likelihood of stripping.
Technical Specifications
Maximum Component Temperature
500C
Physical Dimensions
Outer Diameter 25.4mm
Length 60mm
Mounting Bolt Pattern
Bolt Circle 6x18mm
Thread Type M3x0.5mm
Melt Zone Length
Chube Air 42mm
Chube Conduct 52mm
Filament Compatibility
Filament Diameter 1.75mm
Accessory Compatibility
Nozzle Type
Air V6 & Conduct V6 6mm Hex Preferred RepRap V6 Standard
Air Volcano & Conduct Volcano 6mm Hex Preferred Volcano Standard
Heater Cartridge
Chube Air 6mm x 20-22mm
Chube Conduct 6mm x 47.5mm
Temperature Sensor
All Models Cartridge Style 3mm x 15mm

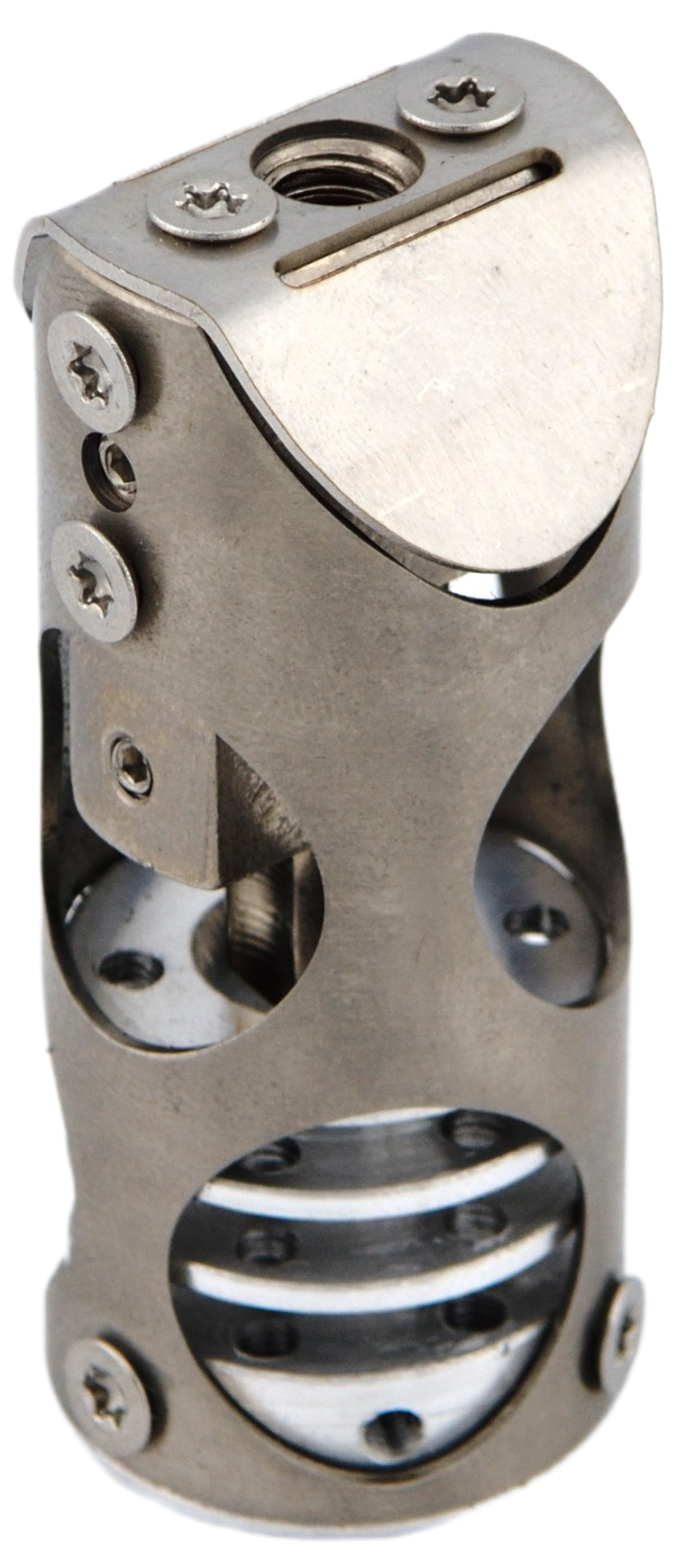

Air

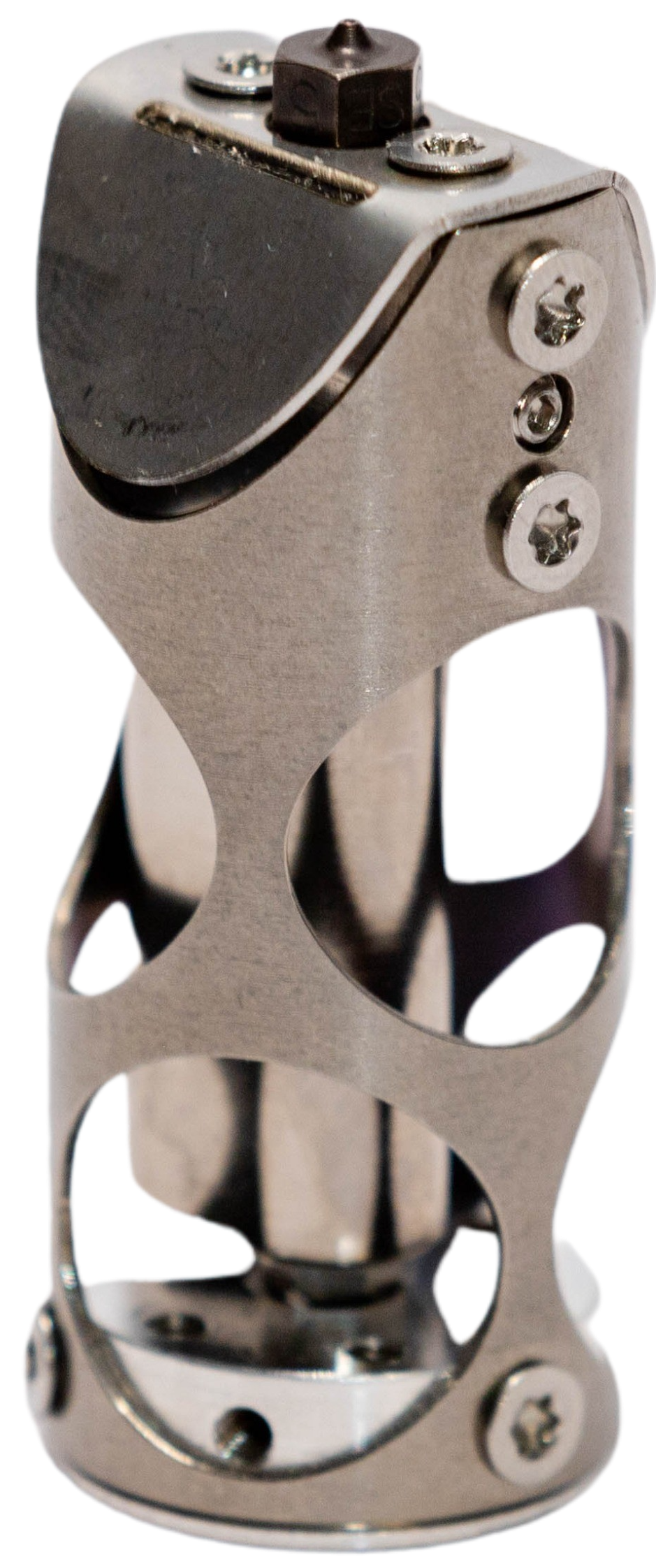

Conduction
Mounting Requirements
Plastic or Metal - Requires Cooling Fan
Can be passively cooled when mounted to metal!
Melt Zone (Before Nozzle)
42mm
Mounting Requirements
Requires metal mounting
Minimum 80cm^2 of exposed radiant surface area
Melt Zone (Before Nozzle)
52mm
All Variants Arrive Assembled!
LukesLab
LUK-HE-CHU-CON-V6
