Bondtech BMG Internals Set for Sherpa Mini

$38.99

Original Bondtech® OEM set of parts to use on the Sherpa Mini from the Annex Engineering group.

Quantity Out-of-Stock

Close

Bondtech BMG Internals Set for Sherpa Mini

Original Bondtech® OEM set of parts to use on the Sherpa Mini from the Annex Engineering group.

Features:

  • Precision cnc-machined.
  • Sharp teeth for maximum grip on the filament.
  • The perfect choice for a high-performance feeding system.
  • Extremely high wear resistance for use with abrasive filaments.

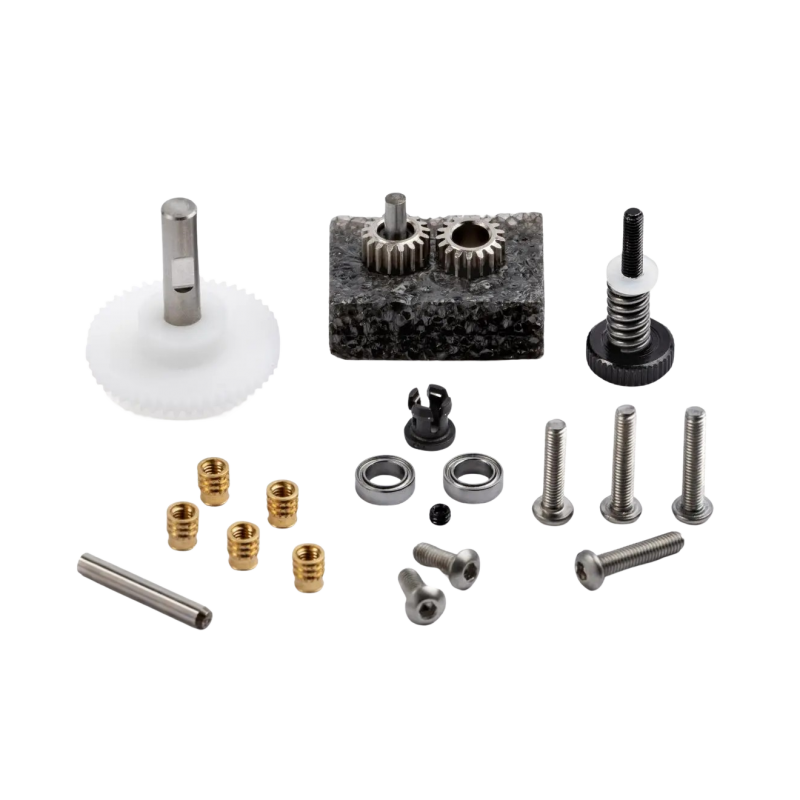

Includes:

1x 1.75/5.0mm Bondtech® Drive Gear Set

Includes primary gear with inner diameter 5 mm, secondary gear with two needle bearings, M3x2 set-screw and one 3 x 20 mm shaft.

1x Main Shaft Assembly (27.6 – 27.8 mm long)

1x Thumbscrew Assembly

2x 5x8x2.5 Ball Bearing

5x M3 Thread Insert

2x M3x16mm BHCS screw

2x M3x14mm BHCS screw

2x M3x8mm BHCS screw

EXT-KIT-86
