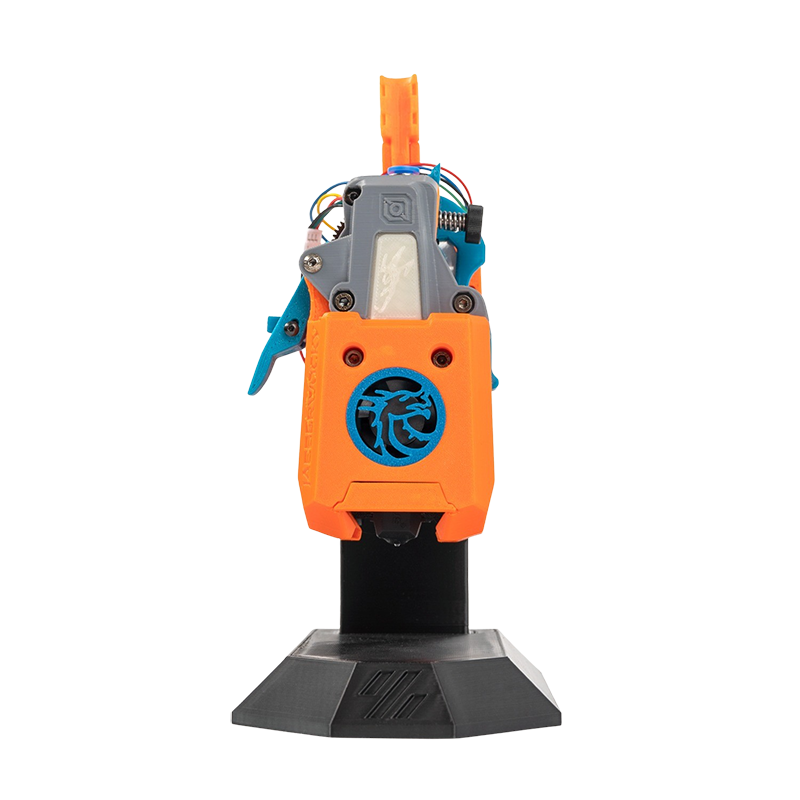

LDO Jabberwocky Toolhead and Extruder for Filament Changers

The Jabberwocky Toolhead and Extruder addresses the specific challenges of filament-changing units (FCUs) and multi-material 3D printing setups.

Learn more at the Github Page

Standard extruders often struggle with the constant loading and unloading cycles that multi-material printing requires, but the Jabberwocky handles those demands like a champ. It combines proven components like Bondtech drive gears and a Phaetus Conch hotend with practical design choices focused on serviceability and consistent performance.

Features

• Phaetus Conch Hotend: Delivers a high flow rate of up to 35 mm³/s for smooth, clog-resistant extrusion, ideal for complex multi-material prints.
• Bondtech Compound Drive Gear with Dual LDO Orbiter Gears: Exceptional filament grip and stability thanks to an offset gear configuration, balancing torque and speed for precise extrusion.
• LDO NEMA14 8T 36mm Stepper Motor: Powers the extruder with reliable, high-torque performance for demanding filament changes.
• Dual High Static Pressure 3010 Fans: Targeted cooling for crisp print quality, reducing warp and improving overhang performance.
• Tool-Free Hinged Extruder Design: Simplifies maintenance and filament loading for both user convenience and minimal downtime.
• Nitehawk 36 Toolhead Board: Seamlessly integrate with Klipper-based systems via USB, providing precise control and configuration.
• Dual Sensor Filament Array: Monitors filament supply to prevent runouts for uninterrupted printing.
• Filament Cutter with Support Bearings: Facilitates clean filament transitions with integrated cable strain relief for durability.
• Status and Nozzle LEDs: Clear visual feedback on the current print status that keeps you informed during operation.

Package Contents

• LDO NEMA14 8T 36mm stepper motor
• Bondtech compound drive gear
• Dual LDO non-threaded Orbiter gears
• Phaetus Conch 35 mm³/s hotend (EXCEPT BASIC)
• Nitehawk 36 toolhead board (EXCEPT BASIC)
• Dual high static pressure 3010 part fans
• High static pressure 2510 hotend fan
• Filament cutter with full-length blades and support bearings
• Status LED and dual nozzle LEDs
• Hardware for assembly
• 3D printed parts (COMPLETE ONLY)

Product Diagram

3D printed parts are only included with the Complete version. Basic and DIY kits should print parts from the Jabberwocky Github page
