Duet3D DuetScreen - V1.0

Learn more at Duet's Documentation

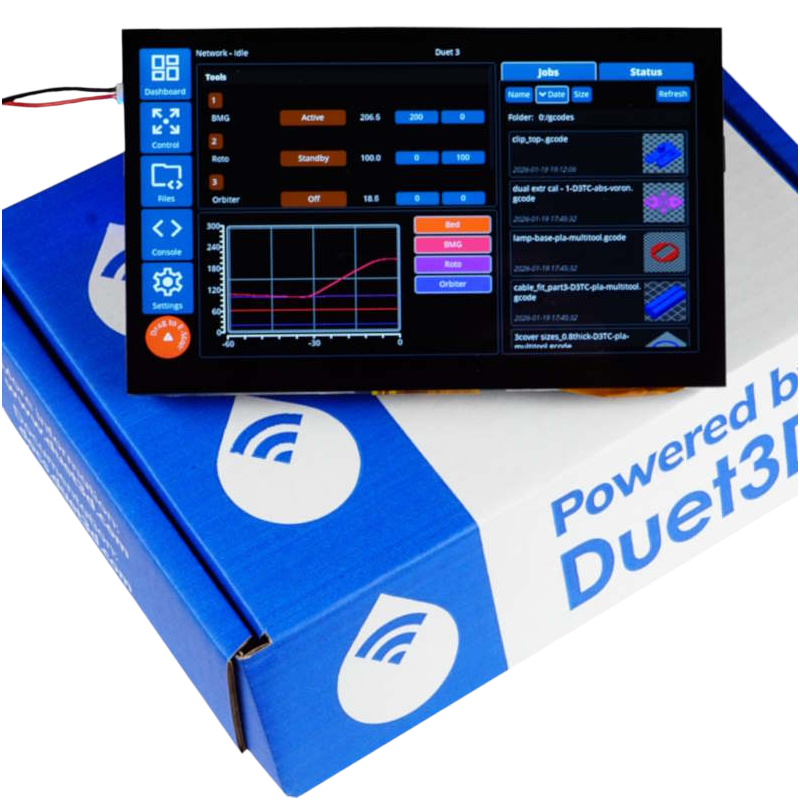

The Duet3D DuetScreen is a family of color touch screen controllers for Duet 2 and Duet 3 based machines. It is also compatible with other Controllers running RepRapFirmware.

The current hardware implementation is the DuetScreen 7, other screen sizes are planned in the future.

The DuetScreen application is built on LVGL and provides a modern machine control UI, initially focused on 3d printers. Its modular design allows for future versions for other machine types.

Features:

Processor Allwinner T113-S3

Processor features Dual-core ARM Cortex-A7, 1.2GHz, 128Mb RAM

Screen Resolution 1024*600

Touch Screen Capacitive

Networking Onboard Wifi module, option for internal or external antenna

USB 1 x USB-A and 1 x USB-C 2.0 ports

Serial 3x UART, 1x USART (not populated in version 1.0 hardware or explicitly supported in the DuetScreen Software)

Other Comms 2x I2C (not populated in version 1.0 hardware or explicitly supported in the DuetScreen Software)

Buzzer On Board Piezo Buzzer

Speaker Header to connect an 8 Ohm mono speaker

Includes:

DuetScreen

Pre-Flashed uSD card (installed)

Connector pack:

• (3) PA 2-Pin Latching Housing
• (2) PA 4-pin Latching Housing
• (30) PA Crimp Contact
