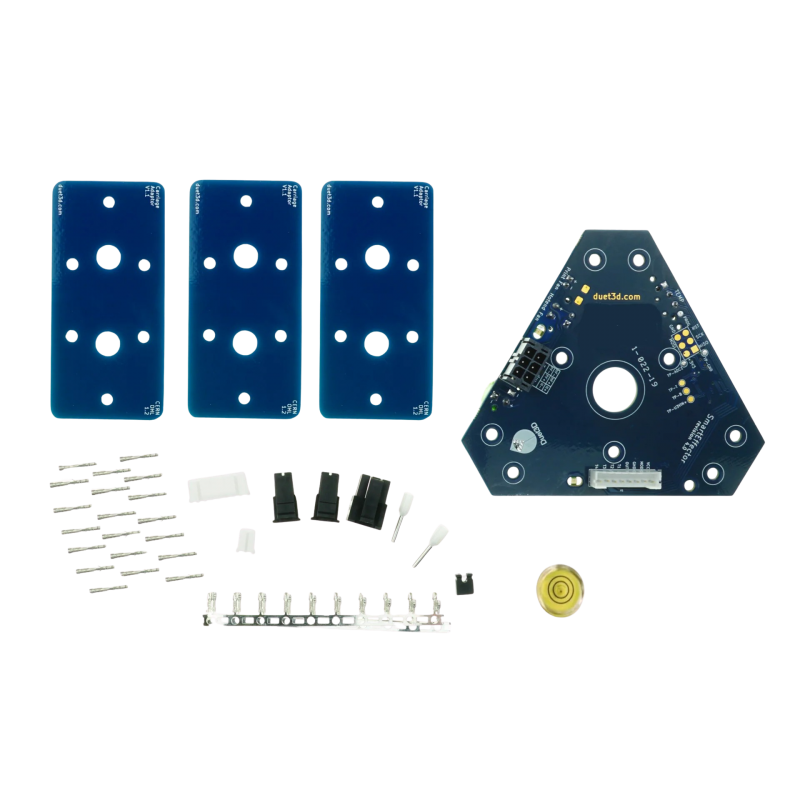

Duet3D Delta Smart Effector - V4.0

Learn More at Duet's Documentation

Features

Built-in nozzle contact detection (Z probe)

Three white LEDs to illuminate the bed whenever the hot end fan is powered

Green LED to indicate Z probe triggering and successful programming

Amber LED to indicate power to hot end heater

Matching PCB carriage adaptors ensure uniform spacing between bearings at top and bottom of the rods, for accurate nozzle motion

Power and signal connectors on top for connection to the 3D printer control electronics, to make removal of the hot end easier

Connectors on underside for hot end heater, hot end fan, print cooling fan and temperature sensor

Support for thermistor, or 2-wire PT100 temperature sensor with 2- or 4-wire connection back to electronics

Compatibility

Compatible with v6 threaded heatsink or the Revo Micro.

Effector and carriage adapters suit magnetic ball studs with M3 tails

carriage adapters suit carriages with 4 x M3 fixing holes in a 20mm square

Compatible with 12V and 24V heaters, and 12V and 24V hot end fan power (jumper selectable)

3.3V or 5V supply needed for nozzle contact sensor

Programmable nozzle contact sensitivity when used with Duet series electronics
