Duet3D Tool Distribution Board (Duet 3)

$27.99

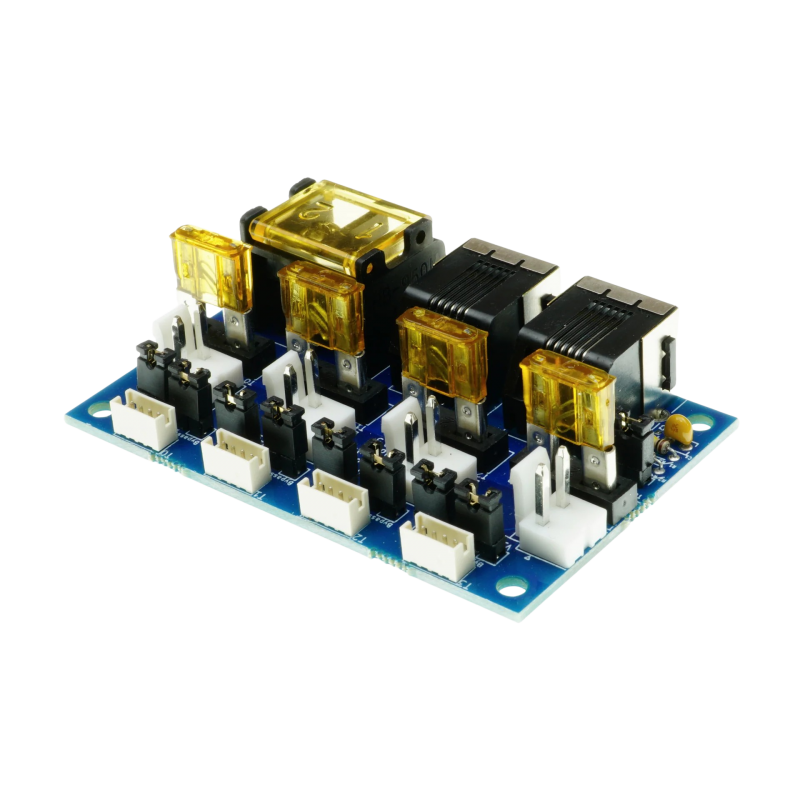

Duet's Tool Distribution board allows for the connection of up to 4 Duet 3 Toolboards to the Duet 3 Mainboard at one time, greatly simplifying the CAN-FD bus and power wiring.

Quantity Ready To Ship

Close

Duet3D Tool Distribution Board (Duet 3)

Learn More at the documentation page

Duet's Tool Distribution board allows for the connection of up to 4 Duet 3 Toolboards to the Duet 3 Mainboard at one time, greatly simplifying the CAN-FD bus and power wiring.

Tool board power outputs are individually bused, and the CAN-FD bus connections can by bypassed if less than 4 tools are connected.

These can be connected to other Duet 3 CAN-FD bus expansion boards (or other tool distribution boards) via the RJ11 connector for CAN-OUT.

Features:

Connectivity - CAN IN- RJ11; CAN OUT- RJ11; 4 x CAN loops to tool boards - JST ZH; Jumpers to bypass unused loops; Bus termination resistor on board (jumper selectable)

Power - 12-32V VIN distributed to 4x power out via 4x 5A fused. Output power connectors - JST VH

DUET_3_T_DB_V0.5
