LDO Leviathan Expansion Board
$47.99
Expansion board for the LDO Leviathan Controller that adds two TMC5160 stepper drivers, increasing motor support from 7 to 9.

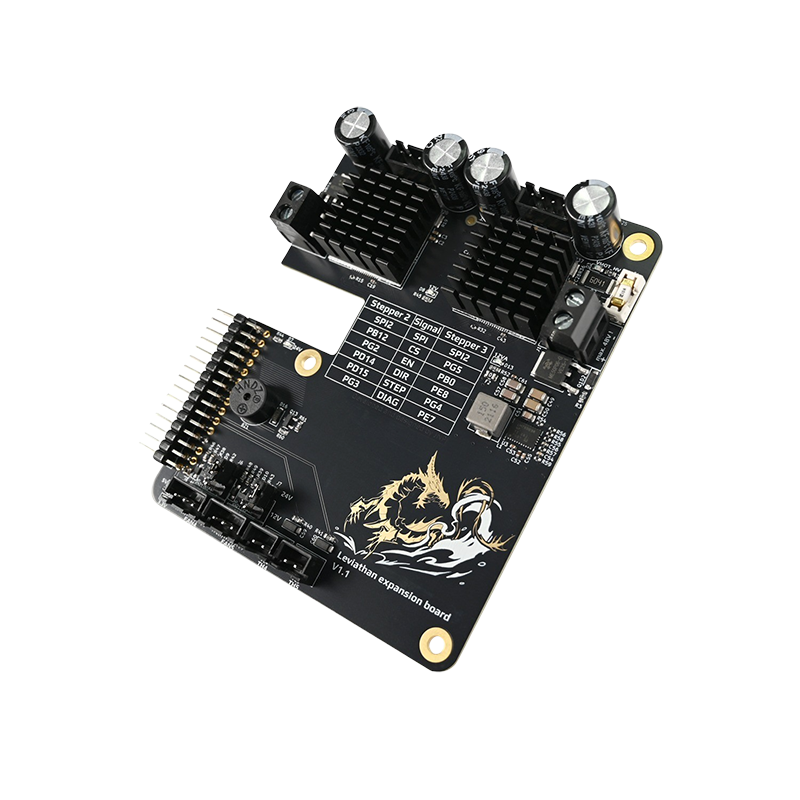

LDO Leviathan Expansion Board
The LDO Leviathan Expansion Board adds support to the Leviathan Controller / Main Board for two additional stepper motors, increasing the total count from 7 to 9. It features two TMC5160 stepper drivers, additional fan and temperature detection interfaces, and a buzzer with customizable frequency for different sounds.
Leviathan Expansion Board Features
- Adds two TMC5160 motor driver interfaces, allowing the Leviathan mainboard to connect up to nine motors.
- Power supply for stepper motors with two voltage options: 24V and 48V.
- Equipped with a buzzer with a center operating frequency of 27 kHz, customizable to produce different sounds by changing the frequency.
- Adds two 3-pin fan interfaces and two temperature detection interfaces.
- Equipped with reverse polarity protection.
LDO-LEVIATHAN-EXP
