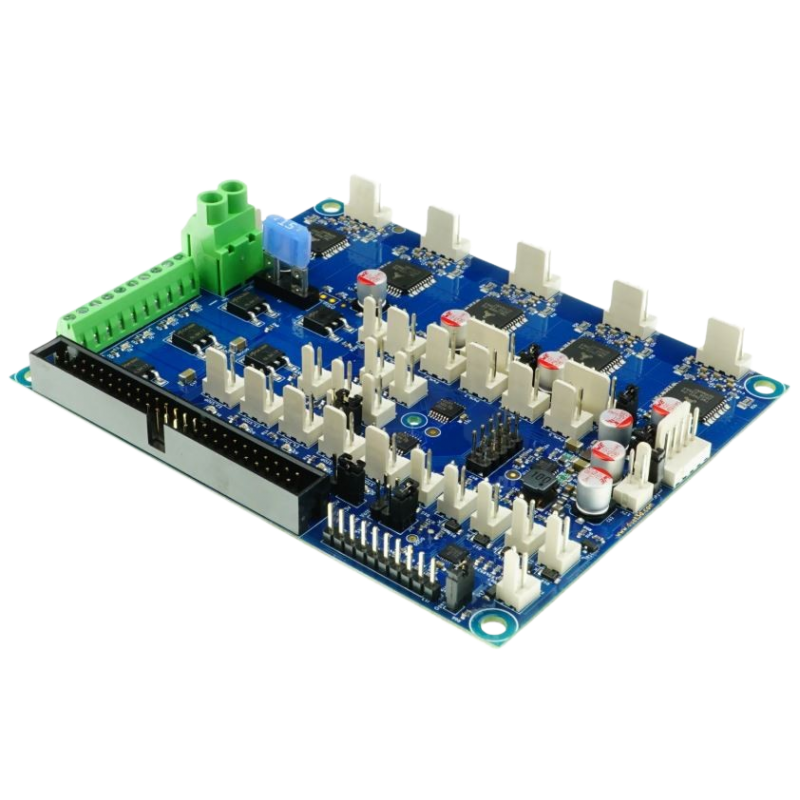

Duet3D DUEX5 Expansion Board - For Duet 2

Documentation can be found at Duet here

The DueX5 is an expansion boards for the Duet 2 Wifi and Ethernet. It provides up to 5 additional stepper, heater etc channels to allow for 3D printers or other machines with more axis, multiple drivers per axis, tool changers etc.

Features:

5 additional TMC2660 stepper motor drivers with stall notification.

5 additional extruder heater outputs.

5 servo outputs with 5V power and 5V signal levels, sharing control channels with the heaters. So you can use unused heater channels to drive servos.

5 additional endstop inputs with indicator LEDs and 3.3V/5V voltage selection. These are also usable as outputs.

5 additional controlled fan outputs, also usable for driving LEDs etc. The output voltage may be switched between 5V, 12V and VIN.

4 uncommitted general purpose I/O pins.

12V switching regulator, for generating a 12V supply for fans, LEDs etc. when the VIN power is higher than 12V.

5 additional thermistor inputs.

Support for 2 more thermocouple or PT100 daughter boards, supporting up to 4 more sensors.

Optional 5V external power input for powering servos, fans etc.

Includes:

Duex5 Expansion Board

50 pin ribbon cable

Connector & Crimp Kit
