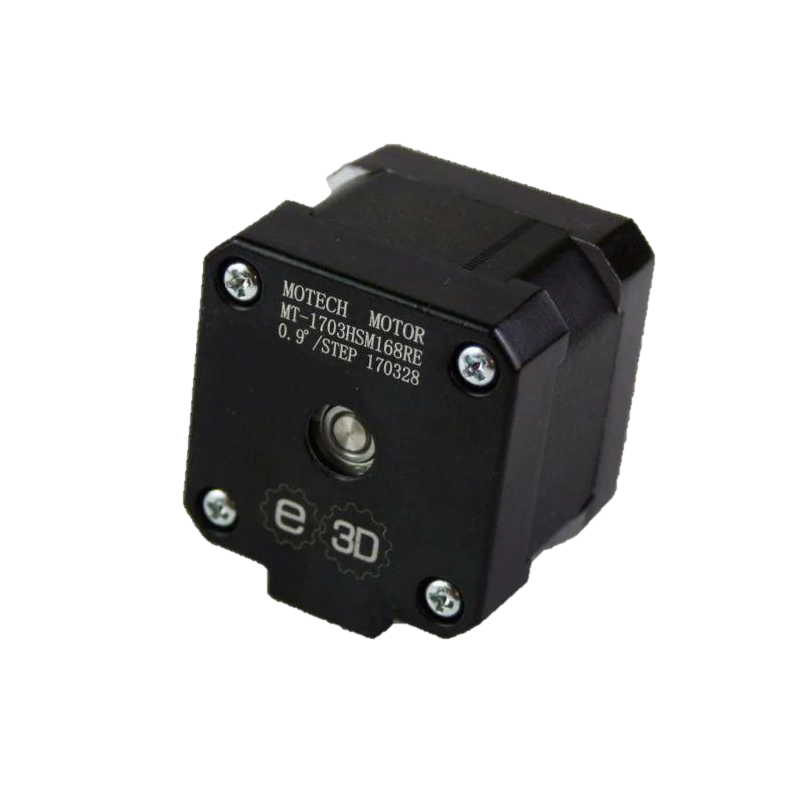

E3D Compact But Powerful Stepper Motor - Nema 17 - 0.9 Degree

$21.99

This motor is lighter and shorter than a typical NEMA17 motor, however it produces almost as much torque. It is suitable for driving geared or direct extruders and is used on our Titan extruder. 40mm body length.

Quantity Ready To Ship

Close

E3D Compact But Powerful Stepper Motor - Nema 17 - 0.9 Degree

Technical Specifications:

  • Step Angle: 0.9 degrees
  • Shaft Diameter: 5mm
  • Rated Current: 1.68A
  • Holding Torque: 3.5 kg/cm
  • Weight: 280g
  • Wiring: Included - 1M - Jacketed Cable - DUPONT (4 pin)

See attached technical specifications PDF for more detailed information!

MT-1703HSM168RE
30 Items

Download

DataSheet for 1703HS Motor

Download (566.75k)
