PRE-ORDER - LDO Motors Compact Dual Voltage Power Supply - LCP300-24D5

$69.99

LDO's Compact line of power supplies are designed to offer high efficiency and flexible power delivery in a small foot print. The LCP300-24D5 was designed with 3D Printers in mind!

THIS ITEM IS ON PREORDER! ETA ON OR BEFORE NOVEMBER 17TH. ORDERS INCLUDING PRE-ORDER ITEMS WILL SHIP COMPLETE WHEN ALL LINE ITEMS ARE IN STOCK. CANCELLATION INCURS A 5% PAYMENT PROCESSING FEE.

Quantity

Wishlist

PRE-ORDER -- SEE DESCRIPTION

Description
Product Details

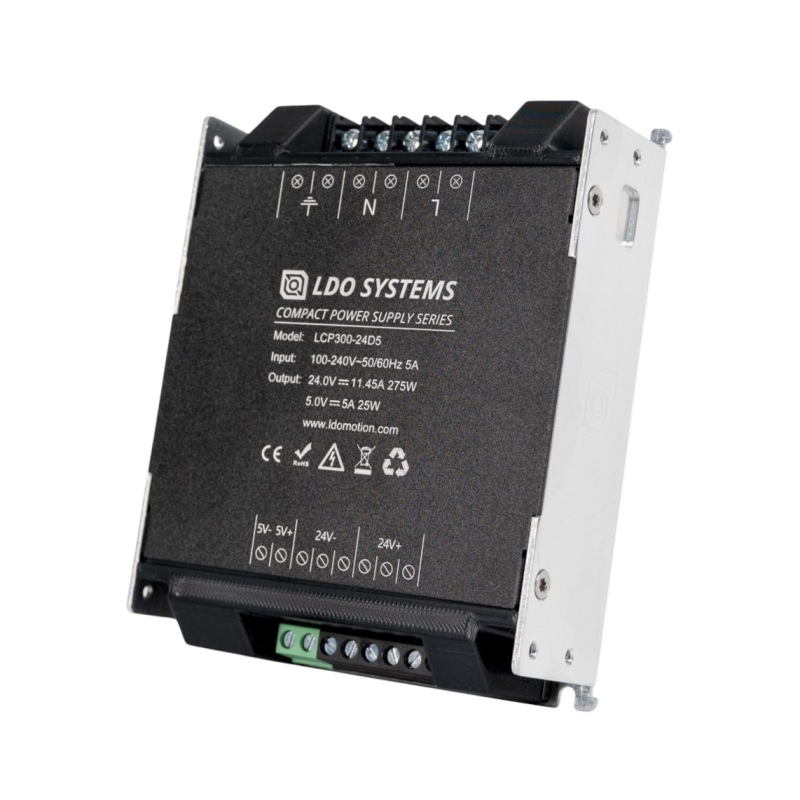

LDO Motors Compact Dual Voltage Power Supply - 24V & 5V

Learn more at the LDO Wiki

Features:

Dual output: 24VDC (x3) and 5VDC (x1)

Highly compact (120×95×35mm) and fully enclosed

GaN technology with PFC and efficiency of up to 91%

Overload, overvoltage, and temperature protection

Wide AC input: 100-240VAC

Dual AC input terminals, supporting AC series connection

Specifications:

Model	LCP300-24D5
Output	Output Voltage	5V	24V
	Max Current	5A	11.45A
	Max Power	25W	275W
	Ripple & Noise (Max)2	150mVp-p	360mVp-p
	Line Regulation	±1%	±1%
	Load Regulation	±5%	±2%
	Start-up / Rise Time3	3000ms/115VAC，≤100ms/220VAC
	Hold-up Time4	≥8.3ms at full load
Input	Voltage Range	100 - 240VAC
	Frequency Range	50-60Hz
	Efficiency	≥91%
	AC Current	3.5A/115VAC 2A/230VAC
	Inrush Current	≤50A/220VAC cold start
	Leakage Current	≤0.75mA, 240VAC/50Hz
	L/N Terminal Current5	12A Max
Protection Features	Overload Protection	≥110% of rated output power
		5.2-6A (5V), 13-17A (24V), output voltage shuts off; recovers automatically after fault removal
	Overvoltage Protection	≥135% of rated output voltage
		Output voltage shuts off; recovers automatically after fault removal
	Temperature Protection	When enclosure surface temperature exceeds 110°C
		Output voltage stops until temperature drops below 80°C
Environmental Conditions	Operating Temperature	-20~40℃
	Operating Humidity	10~90%
	Storage Temperature & Humidity	-30~85℃/ 5~90%
	Vibration	10-500Hz, 2G, 10 minutes/cycle, 60 minutes in each X, Y, and Z direction
Safety & Compliance	Safety Standards
	High Voltage Resistance	2.5KVAC
	Insulation Resistance	≥100MΩ
	EMC Immunity	Compliant with EN/IEC: EN55032
	Harmonic Standards	Compliant with IEC61000-3-2
Others	Dimensions	120.0mm (L) * 95.0 mm (W) * 35.0 mm (H)
	Packaging	132x105x39mm
	MTBF	50000h (25℃)
Notes	Unless otherwise specified, all specifications are measured under 230VAC input, rated load, and 25°C ambient temperature. Ripple and noise measurement: Measured at the end of the output cable, with a 0.1μF ceramic capacitor and a 47μF electrolytic capacitor. Start-up time: The time from when power is applied to the input until the output voltage rises to 90% of its rated value. Rise time: The time required for the power supply to reach its rated output value from a no-power state. Hold-up time: The duration from when the AC input is cut off to when the output drops below 5% of the standard value. L/N terminal current: Refers to AC voltage interface, where a single input is used to distribute one output. The maximum current the AC voltage interface can withstand is 12A.
